Description

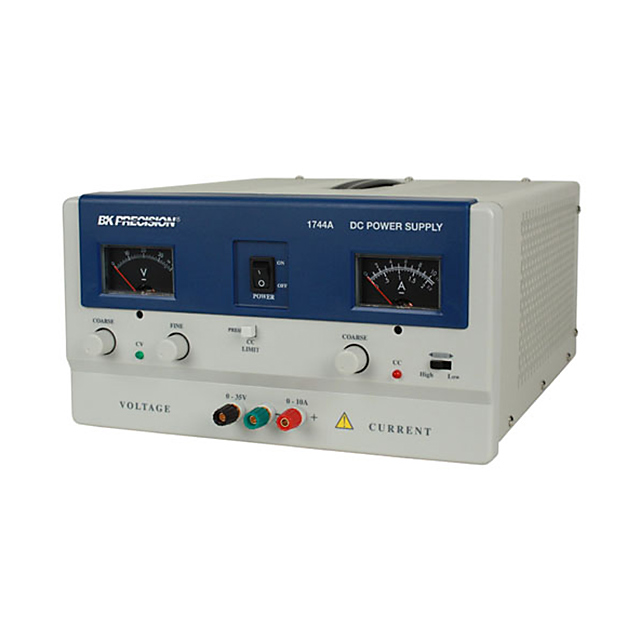

1744A B&K Precision Power Supply Bench (AC to DC) 120VAC Analog 0 ~ 35VDC 0 ~ 10A Dual Display(s). Models 1744A & 1745A DC Power Supplies are high quality, general purpose dc power sources. They provide 0-35 volts dc output, adjustable with both coarse and fine voltage controls for precise settability. The current output is 0-10 amps, adjustable with both coarse and fine current controls (model 1745A). Two large LED meters continuously monitor the output voltage and current (model 1745A). The VOLTAGE meter is green, while the CURRENT meter is red (model 1745A).
The addition of this low-noise, high-reliability supply offers the user an increased selection of versatile, cost-effective, state-of-the-art DC power supplies. The Model 1744A’s excellent line and load regulation, small footprint, compact profile and price performance makes it an ideal choice for use in a variety of bench top applications.
The Model 1744A offers unique and useful Features: not normally found in a power supply at this low price. An output ON/OFF switch can turn off the output without turning off the power supply An output-shorting button allows the user to short the output so that the current limit can be set. On most power supplies, the user would have to use a piece of wire to short the output to set the current limit. With the Model 1744A, all the user has to do is press and hold this button in to short the output. When the button is released, the output is no longer shorted.
B&K Precision’s Model 1744A DC Analog Power Supply provides maximum current output continuously hour after hour without overheating. It is an ideal supply for Educational, Service and Maintenance and Manufacturing applications, offering exceptional performance at a very reasonable price.
The Model 1744A DC Analog Power Supply Features a front-panel-mounted precision Analog Voltmeter and Ammeter. Other front panel indicators and controls include an OFF/ON power switch, a Power LED, Overload Indicator light, Voltage Adjustment Knob, and Shorting Button. It also provides variable output voltage of 0VDC to 35VDC, 0A to 10A output current. The system is fully overload protected and Features: constant voltage/current operation, excellent line and loads regulation and has low ripple and noise characteristics.
Specs
Product Category: Power Supplies – Bench Top
Product: DC Power Supplies
Input Voltage: 120 VAC, 220 VAC, 230 VAC
Number of Outputs: 1 Output
Output Voltage-Channel 1: 0 VDC to 35 VDC
Output Current-Channel 1: 0 A to 10 A
Output Power: 560 W
Display Type: Dual Analog
Brand: B&K Precision
Cable Type: North American Power Cord Included
Product Type: Bench Top Power Supplies
Subcategory: Power Supplies
Unit Weight: 32 lbs
Number of Outputs: 1
Voltage Output: 0 ~ 35VDC
Current Output: 0 ~ 10A
Size / Dimension: 15.000″ L x 10.500″ W x 5.700″ H (381.00mm x 266.70mm x 144.78mm)
Manufacturer: B&K Precision
Datasheet: 1743B_datasheet.pdf
