Description

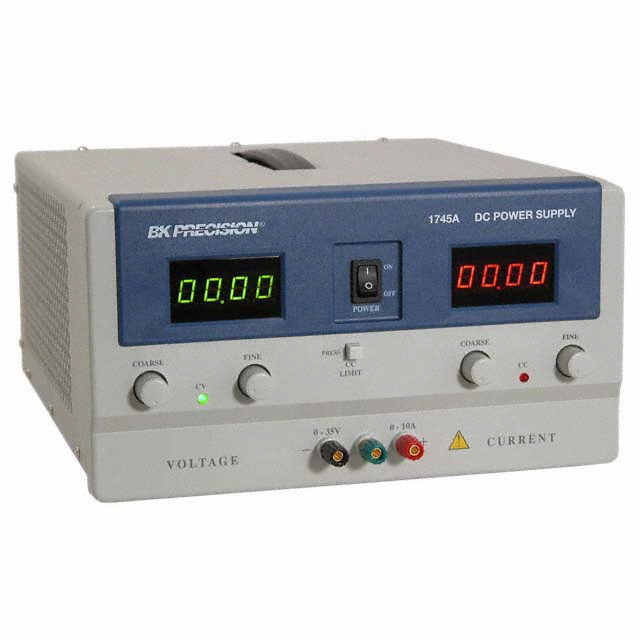

1745A B&K Precision Power Supply Bench (AC to DC) 120VAC LED 0 ~ 35VDC 0 ~ 10A Dual Display(s). The 1745A is a 0-35V, 0-10A DC power supply with a large array of great features not usually available in similar price range products. The output-shorting button allows the user to short the output terminals to set the current limit.
Connect two supplies in series to double the voltage current and in parallel to double the output
Reliable, Durable
Operate continuously at full load without overheating
Fully overload protected
Coarse and fine voltage controls
Excellent regulation
Very low ripple
Constant voltage or constant current operation
Continuously monitor voltage and current output on two meters
0 to 35V, 0 to 10A DC Power Supply
All of the great features and performance you would expect from a B+K Precision power supply
Four digit LED disply that allows you to see 10mV and 1mA resolution
Output shorting button that allows the user to short the output terminals to set the current limit
Output Voltage 0 to 35 VDC, Coarse and fine adjustment
Output Current 0 to 10 A
Constant Voltage Operation
Voltage Regulation Line (108 – 132): <0.2% + 2mV
Load (no load to full load): <0.04% + 2mV
Recovery Time <100us typical
Ripple Voltage RMS <1mV
Temperature Coefficient 0º to +40ºC <300 PPM/ºC
Constant Current Operation
Adjustable Current Limits 5% to 100%
Current Regulation Line: (108 - 132V) <0.4% + 5mA
Load: <0.4% + 5mA
Current Ripple <3mA typical
Number of Outputs: 1
Voltage Output: 0 ~ 35VDC
Current Output: 0 ~ 10A
Size / Dimension: 15.000" L x 10.500" W x 5.700" H (381.00mm x 266.70mm x 144.78mm)
Manufacturer: B&K Precision
Datasheet: 1743B_datasheet.pdf
