Description

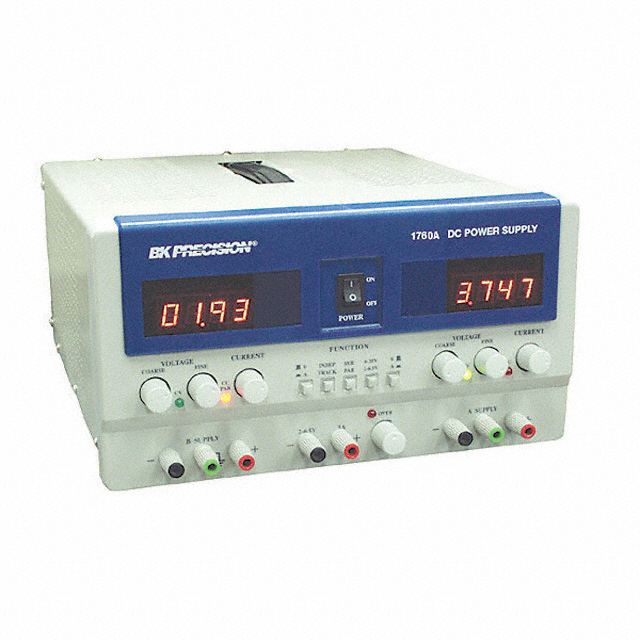

1760A B&K Precision Power Supply Bench (AC to DC) 108 ~ 132VAC LED 0 ~ 30VDC, 0 ~ 30VDC, 4 ~ 6.5VDC 0 ~ 2A, 0 ~ 2A, 5A Independent or Tracking Modes. 1760A is a triple output DC power supply. It offers three independent outputs with coarse and fine adjustment knobs for volts. The 4-digit LED display offers 10mV and 1mA resolution, providing the capability to set voltage and current values more accurately than 3-digit displays found in most comparable power supplies.
Constant voltage (CV) and constant current (CC) operation
Independent or series tracking/parallel mode operation to double voltage or current
Coarse and fine voltage controls, adjustable current limiting
Overvoltage protection and reverse polarity protection
Designed to operate continuously at rated output
cULus recognized
0-30V (A & B)/4-6.5V (C) output voltage, 0-2A (A & B)/5A (C) output current
100µs recovery time
Two 4-digit LED display, operating temperature range from 0° to 40°C ≤ 85% RH
Dimensions (W x H x D) is 10.5 x 5.7 x 15″
Specs
Manufacturer: B&K Precision
Product Category: Power Supplies – Bench Top
Product: DC Power Supplies
Type: CC/CV Modes
Input Voltage: 120 VAC, 220 VAC, 230 VAC, 240 VAC
Number of Outputs: 3 Output
Output Voltage-Channel 1: 0 VDC to 30 VDC
Output Current-Channel 1: 0 A to 2 A
Output Voltage-Channel 2: 0 VDC to 30 VDC
Output Current-Channel 2: 0 A to 2 A
Output Voltage-Channel 3: 4 VDC to 6.5 VDC
Output Current-Channel 3: 5 A
Output Power: 350 W
Display Type: LED, Dual 4 Digit
Brand: B&K Precision
Cable Type: North American Power Cord Included
Height: 5.7 in
Length: 1.25 ft
Product Type: Bench Top Power Supplies
Series: 1760A
Subcategory: Power Supplies
Width: 10.5 in
Unit Weight: 29 lbs
Number of Outputs: 3
Voltage Output: 0 ~ 30VDC, 0 ~ 30VDC, 4 ~ 6.5VDC
Current Output: 0 ~ 2A, 0 ~ 2A, 5A
Size / Dimension: 15.000″ L x 10.500″ W x 5.700″ H (381.00mm x 266.70mm x 144.78mm)
Manufacturer: B&K Precision
Datasheet: 1760A_Series_datasheet.pdf
