Description

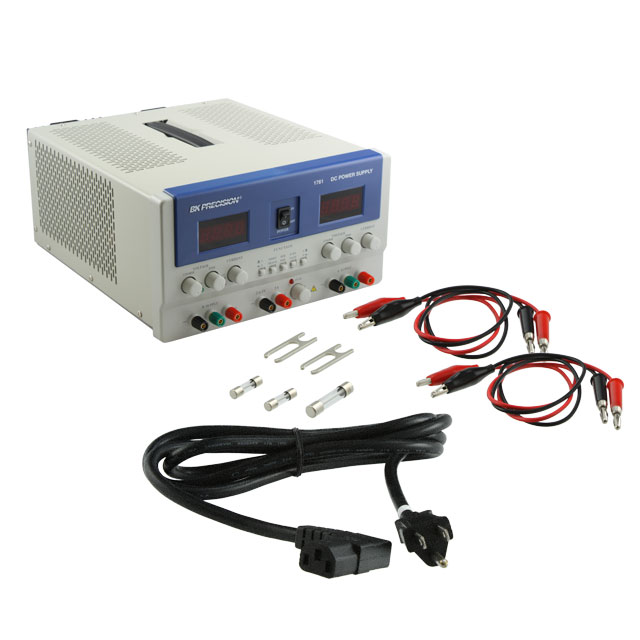

1761 B&K Precision Power Supply Bench (AC to DC) 120VAC LED 0 ~ 35VDC, 0 ~ 35VDC, 2 ~ 6.5VDC 0 ~ 3A, 0 ~ 3A, 5A Independent or Tracking Modes. The 1761 triple output DC power supply offers three independent outputs with two 4-digit LED displays and 10 mV/1 mA resolution. The coarse and fine voltage control knobs make it an ideal supply for power-sensitive applications. These power supplies also provide overload and reverse polarity protection.
CV (constant voltage)/CC (constant current) mode operation
Continuously monitor voltage and current output on two 4-digit LED displays
Series tracking and parallel tracking mode operation to double output voltage or current
Overload and reverse polarity protection
Excellent regulation
Very low ripple
cUL approved
Two 0 to 35 VDC, 0-3 A outputs capable of independent, series or parallel operation One 2 to 6.5 VDC, 5 A output Switchable series/parallel operation (35 V outputs) Coarse and fine voltage controls (35 V outputs) Adjustable current limit controls (35 V outputs) Two 4 digit LED displays, one reads volts or amps of “B” supply, one reads volts or amps of “A” supply or 2 to 6.5V supply Unique variable tracking, B track A at 5% to 100% UL Listed for USA and Canada 2 Year WarrantyBK Precision’s new Model 1761 Triple Output DC Power Supply offers outputs with two 0 to 35V, 0 to 3A and one 2 to 6.5V, 5A outputs with two 4 digit LED displays. The 4 digit LED displays offer 10mV and 1mA resolution which provides higher accuracy. This makes it an ideal supply for power sensitive applications. The 1761 is fully overload protected and comes with a two year warranty.
specs
Brand: B&K Precision
Number of Outputs: Triple Output
Output Voltage: 2-6.5V, 35V x 2
Output Current: 3A x 2, 5A
Power Rating: 92 W
Input Voltage: 108-132 VAC
Interface: None
Special Features: Constant Current, Constant Voltage
Display: LED
Series: 1760A Series
Mounting Type: Bench Top
Programmable: No
Number of Outputs: 3
Voltage Output: 0 ~ 35VDC, 0 ~ 35VDC, 2 ~ 6.5VDC
Current Output: 0 ~ 3A, 0 ~ 3A, 5A
Size / Dimension: 15.000″ L x 10.500″ W x 5.700″ H (381.00mm x 266.70mm x 144.78mm)
Manufacturer: B&K Precision
Datasheet: 1760A_Series_datasheet.pdf
