Description

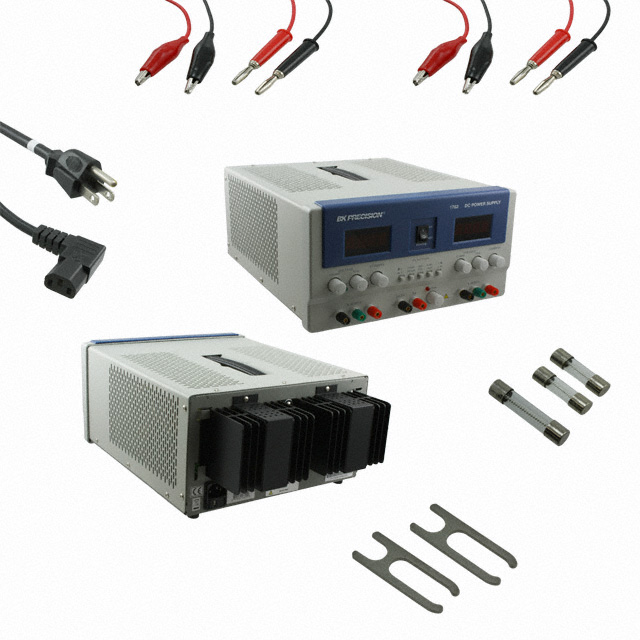

1762 B&K Precision Power Supply Bench (AC to DC) 108 ~ 132VAC LED 0 ~ 60VDC, 0 ~ 60VDC, 4 ~ 6.5VDC 0 ~ 2A, 0 ~ 2A, 5A Constant Current and Constant Voltage Indicators. The BK Precision 1762 Triple-Output DC Power Supply offers three independent outputs with coarse and fine adjustment knobs. Two panel-mounted 4-digit LED meter displays can monitor either the output current or output voltage of each supply. It is designed to operate continuously at rated output.
B&K Precision 1762 Triple Output DC Power Supply delivers 0-60 V/0-2 A on 2 outputs and 4-6.5 V/4 A on 1 output. The 4-digit LED display offers 10mV and 1mA resolution, providing the capability to set voltage and current values more accurately and precisely compared to 3-digit displays found in most comparable power supplies. The power supply is fully overload protected and comes with a two-year warranty.
Specs
Product Category: Power Supplies – Bench Top
Product: DC Power Supplies
Type: CC/CV Modes
Input Voltage: 120 VAC, 220 VAC, 230 VAC, 240 VAC
Number of Outputs: 3 Output
Output Voltage-Channel 1: 0 VDC to 60 VDC
Output Current-Channel 1: 0 A to 2 A
Output Voltage-Channel 2: 0 VDC to 60 VDC
Output Current-Channel 2: 0 A to 2 A
Output Voltage-Channel 3: 2 VDC to 6.5 VDC
Output Current-Channel 3: 5 A
Output Power: 350 W
Display Type: LED, Dual 4 Digit
Brand: B&K Precision
Cable Type: North American Power Cord Included
Height: 5.7 in
Length: 1.25 ft
Product Type: Bench Top Power Supplies
Series: 1760A
Subcategory: Power Supplies
Width: 10.5 in
Unit Weight: 21 lbs
Number of Outputs: 3
Voltage Output: 0 ~ 60VDC, 0 ~ 60VDC, 4 ~ 6.5VDC
Current Output: 0 ~ 2A, 0 ~ 2A, 5A
Size / Dimension: 15.000″ L x 10.500″ W x 5.700″ H (381.00mm x 266.70mm x 144.78mm)
Manufacturer: B&K Precision
Datasheet: 1760A_Series_datasheet.pdf
