Description

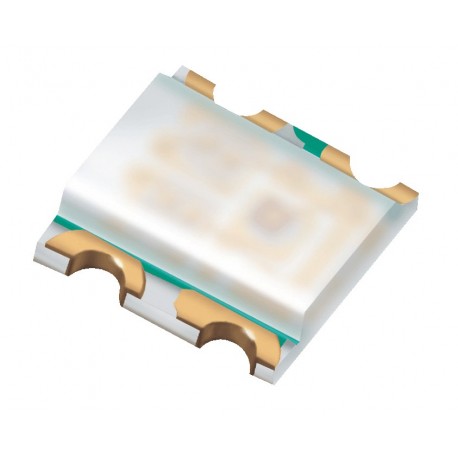

This SMD LED is much smaller than lead frame type components, thus enableing smaller board size, higher packing density, reduced storage space and finally allowing for smaller equipment to be obtained. Its lightweight makes them ideal for miniature applications. etc
Package 1613
Mounting SMD
Type Low-Mid Power
Off State Lens Color Water Clear
Length 1.6mm
Width 1.3mm
Thickness 0.4mm
Typ. Dominant Wavelength 624/470nm
Viewing Angle 120 deg.
Min. Flux 72/45mcd
Max. Flux 100/80mcd
Test Current 20mA
Max. Forward current 25/20mA
Min. Forward Voltage 1.7/2.7V
Typ. Forward Voltage 2/3.3V
Max. Forward Voltage 2.4/3.7V
Max. Pulsed Current 60/100mA
Min. Operating Temp. -40C
Max. Operating Temp. 85C
Packaging Tape & Reel
Min. Storage Temp. -40C
Max. Storage Temp. 90C
Manufacturer Part Number: 19-226/R6BHC-C02/2T
Everlight
