Description

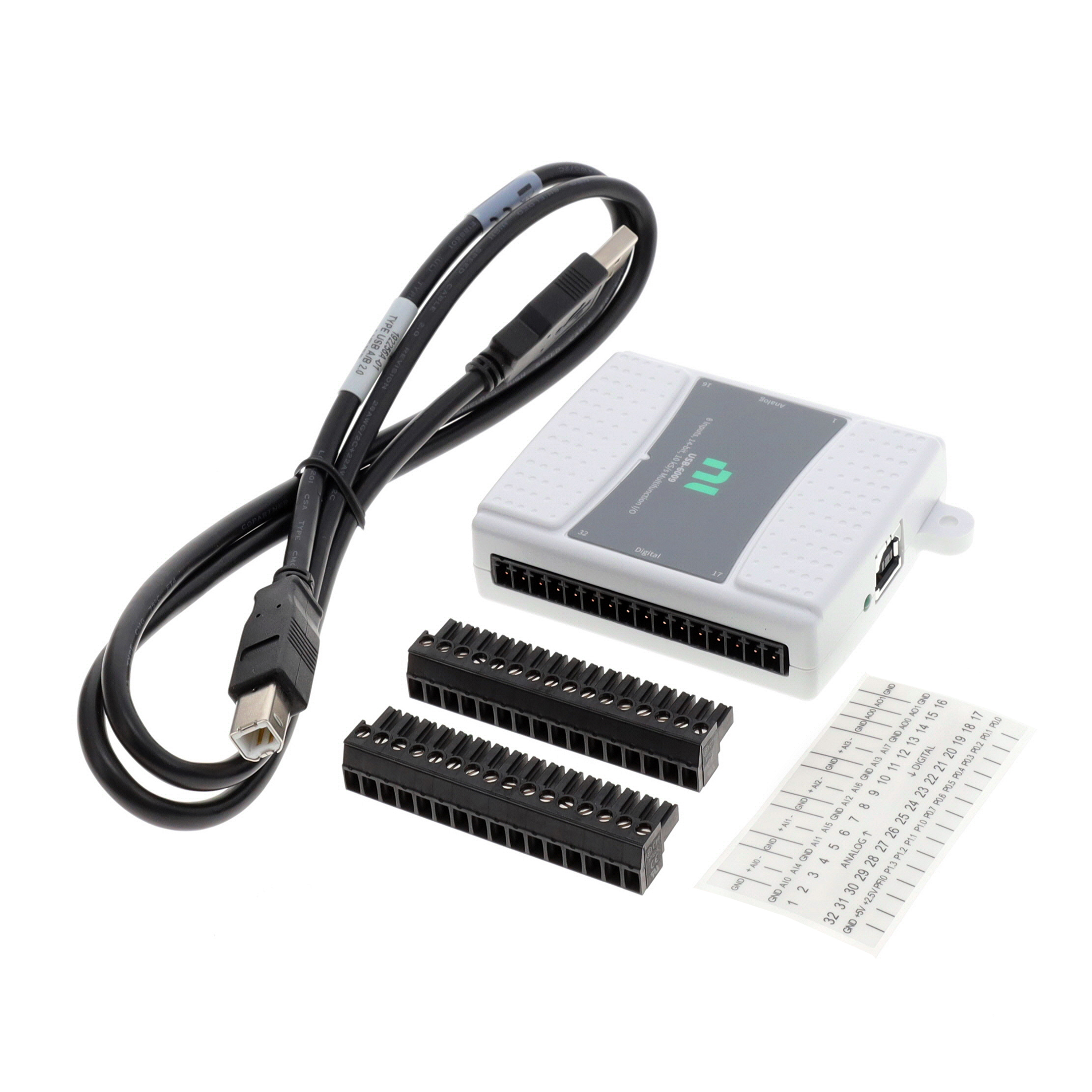

191039-01 National Instruments (NI) Multifunction I/O USB 2.0 14 Bits DAQ Device 48k Multiplexed Output:,, Screw Terminal
The USB-6009 is a low-cost, multifunction DAQ device. It offers analogue I/O, digital I/O, and a 32-bit counter. The USB-6009 provides basic functionality for applications such as simple data logging, portable measurements, and academic lab experiments. The device features a lightweight mechanical enclosure and is bus powered for easy portability. You can easily connect sensors and signals to the USB-6009 with screw-terminal connectivity. The included NI-DAQmx driver and configuration utility simplify configuration and measurements.
The National Instruments USB-6008 Multifunction I/O Device offers 10 kS/s sample rate while operating with a single channel or multiple channels. The USB-6008 Multifunction I/O Device features a USB connector, an LED, and two screw terminal connector plugs. The screw terminal connector plugs are provided for I/O, while the USB connector is provided for a full-speed USB interface. The green LED indicates device status. The eight analog inputs can be utilized for eight single-ended (SE) or four differential analog input measurements. For the conversion of analog signals to digital signals, the NI USB-6008 Multifunction I/O Device comes equipped with one analog-to-digital converter.
Function: Multifunction I/O
Technical Specifications
Product Type
Multifunction I/O Device
Resolution (Bits)
14bit
No. of Output Channels
2Channels
Supply Voltage Range
-10V to 10V
For Use With
NI DAQ Devices
SVHC
Lead
Sampling Rate
48kSPS
No. of Input Channels
8Channels
No. of I/O’s
13I/O’s
Operating Temperature Range
0°C to +55°C
Product Range
USB-6009
USB-6008-Specifications
