Description

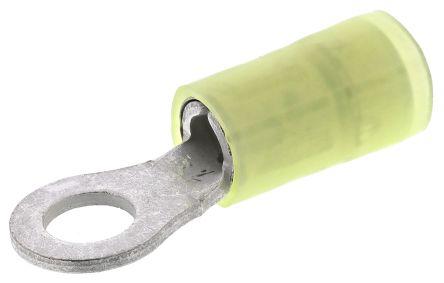

19324-0001 Molex Molex, Avikrimp Insulated Ring Terminal, M2.6 (#4) Stud Size, 0.5mm2 to 1mm2 Wire Size RoHS
Specifications
Manufacturer: Molex
Product Category: Terminals
Product: Screw Terminals
Type: Ring
Wire Gauge: 0.5 mm2
Stud / Tab Size: # 4
Termination Style: Crimp
Mounting Style: Screw
Insulation: Insulated
Color: Red
Contact Plating: Tin
Contact Material: Copper
Series: 19324
Tradename: Avikrimp
Packaging: Bulk
Insulation Material: Nylon (PA)
Length: 17.3 mm
Material: Copper Alloy
Brand: Molex
Product Type: Terminals
Factory Pack Quantity: 1000
Subcategory: Terminals
Part # Aliases: 0193240001 193240001
Unit Weight: 0.027549 oz
Molex Avikrimp Insulated Crimp Ring Terminals Avikrimp insulated crimp ring terminals with a seamless barrel and halogen free nylon insulation. These Avikrimp insulated crimp ring terminals are made from copper with tin plating and have a tin plated brass ferrule. The seamless barrel of these Avikrimp crimp ring terminals enables easier crimping by allowing the barrel to rotate in the crimping jaws and are also available in different wire and stud sizes.
Manufacturer: Molex
MFG Part #: 19324-0001
