Description

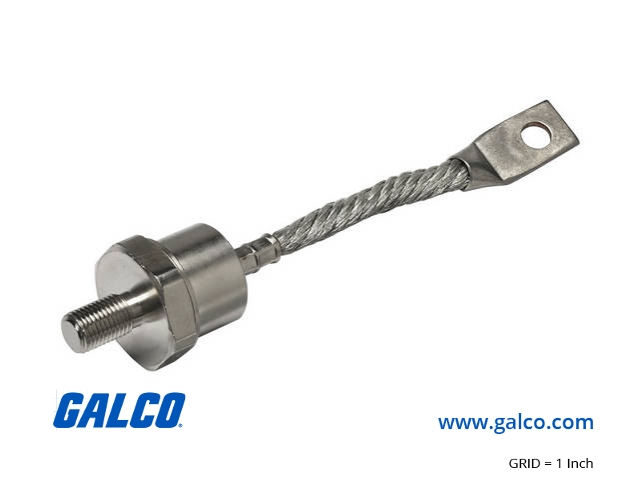

1N3290 NJS New Jersey Semiconductor Standard Recovery Diodes DO-8, 300V, 100A DO8 package
Specifications
Item Number: 1N3290
Item Category:Diodes
Subcategory: Standard Recovery
Series: 1N
Package Type: DO-205AA (DO-8)
Polarity: Cathode Stud (Forward)
Vrrm (volts): 300 Volts
IF (avg) Amps: 100 Amps
Ifsm Amps: 1,550 Amps
I2T@60Hz (A2Sec): 11,500
I2T@50Hz (A2Sec): 24,000
Vfm (volts): 1.35 Volts
Junction Temp.: -40 to 392 Degrees F
Mounting Force: 11.3~14.1 lbf-inches
Stud Size: 3/8-24 UNF-2A
Lead Type: Flexible
Lead Length FMS (inches): 5.59 Inches
RoHS Compliant: No
Manufacturer: Electronic Components
MFG Part #: 1N3290
