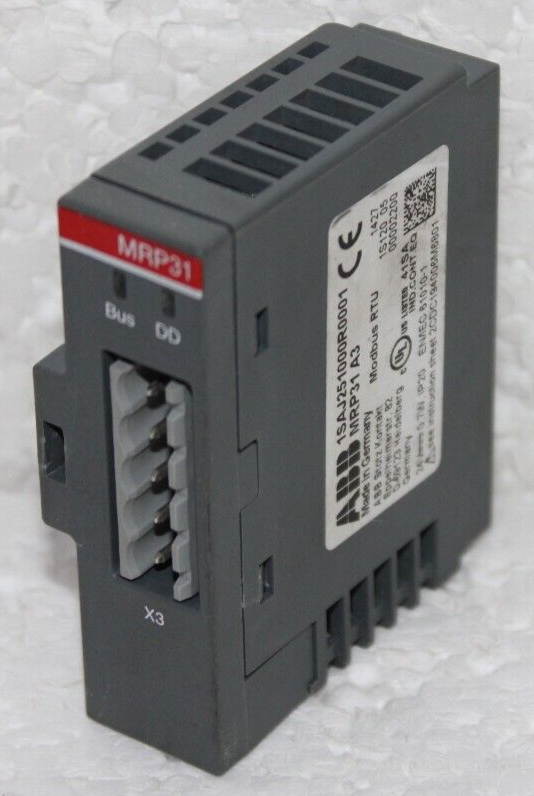

1SAJ251000R0001 ABB Modbus RTU Interface

Please call 800-717-6475 to check current stock and pricing.

1SAJ251000R0001 ABB MRP31.0 device allows the connection of the Universal Motor Controller UMC100.3 to a Modbus RTU network. It can be mounted directly onto the UMC100.3 or on the SMK3.0 mounting kit.

SKU: 1SAJ251000R0001 Category: Interface Brand: ABB

Description

1SAJ251000R0001 ABB Interface, Single Mounting Kit, Series: MRP31, 24 V DC, Modbus RTU Interface, Specifications: IEC/EN 61131-2/UL 61010-1/UL 61010-2-201/CAN/CSA C22.2 No.61010-1/CAN/CSA C22.2 No.61010-2-201, For Use With: UMC100, 64 mm H x 22.5 mm W x 54 mm D Dimensions

Specs

Dimensions
Product Net Width:22.5 mm
Product Net Depth / Length:54 mm
Product Net Height:64 mm
Product Net Weight:39 g
Technical
Connecting Capacity:1x 0.2-2.5 mm²
Mounting Type:UMC100.3/Single Mounting
Mounting on DIN Rail:With Single Mounting KIt
Power Loss:Approximately 0.6 W
Rated Control Supply Voltage (Us):24 V DC
Recommended Screw Driver:Pozidriv 1
Standards:CAN/CSA C22.2 No.61010-1
CAN/CSA C22.2 No.61010-2-201
IEC/EN 61131-2
UL 61010-1
UL 61010-2-201
Suitable For:UMC100.3
Terminal Type:Screw Terminals
Tightening Torque:Auxiliary Circuit 0.5 N·m
Control Circuit 0.5 N·m
Wire Stripping Length:7 mm
Technical UL/CSA
Connecting Capacity UL/CSA:Flexible with Ferrule 1x 28-12 AWG
Rigid 1x 28-12 AWG
Environmental
Degree of Protection: IP20
