Description

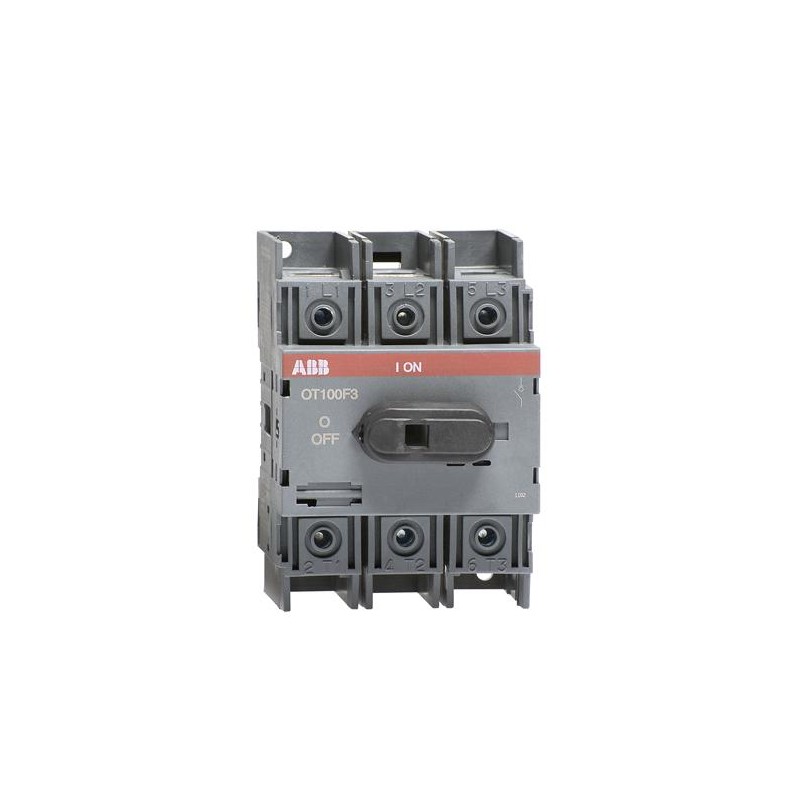

3-pole, front operated, base mounted, DIN-rail mountable switch-diconnector / non-fusible diconnect switch with protected clamp terminals, handle and shaft are not included OT100F3 | 1SCA105004R1001 | ABB 1SCA105004R1001 OT100F3 Switch-disconnector; Poles: 3; DIN; 100A; OT
Front operated switch-disconnectors, base and DIN-rail mounting OT16…160
* Part number: OT100F3
* Including protected terminal clamps, IP20. Handle and shaft have to be ordered separately.
General Information
Extended Product Type OT100F3
Product ID 1SCA105004R1001
EAN 6417019391359
Catalog Description OT100F3 SWITCH-DISCONNECTOR
Dimensions
Product Net Width 100 mm
Product Net Height 70 mm
Product Net Weight 0.36 kg
Container Information
Package Level 1 Units 1 piece
Package Level 1 Width 81 mm
Package Level 1 Height 86 mm
Package Level 1 Gross Weight 0.39 kg
Package Level 1 EAN 6417019391359
Environmental
Conventional Freeair Thermal Current Ith q = 40C 115 A
Environmental Information 1SCC301183D0201
RoHS Status Following EU Directive 2011/65/EU
MFG Part #: 1SCA105004R1001
3-pole, front operated, base mounted, DIN-rail mountable switch-diconnector / non-fusible diconnect switch with front protected clamp terminals, handle and shaft are not included
ABB EcoSolutions
Environmental Information:
PEI OT100-125
Environmental Product Declaration – EPD:
PEP, EPD, OT100-125
Material Compliance
Conflict Minerals Reporting Template (CMRT):
CMRT – Conflict Minerals Reporting Template
REACH Declaration:
Reach Declaration / AC Switches and Fusegear
RoHS Information:
RoHs Declaration / AC Switches and Fusegear
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act – TSCA:
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Popular Downloads
Data Sheet, Technical Information:
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB
Instructions and Manuals:
Switch Disconnectors OT100-125F3-4
Mechanical Drawings:
OT100-125F3, dwg-file
OT100-125F3, dxf-file
OT100-125F3.igs
Environmental Product Declaration – EPD:
PEP, EPD, OT100-125
Environmental
Degree of Protection:
Front IP20
Environmental Information:
PEI OT100-125
Pollution Degree:
3
Ordering
Minimum Order Quantity:
10 piece
Customs Tariff Number:
85365080
Country or Territory of Origin:
Finland
Dimensions
Product Net Width:
70 mm
Product Net Height:
100 mm
Product Net Depth / Length:
74 mm
Product Net Weight:
0.36 kg
Container Information
Package Level 1 Units:
box 1 piece
Package Level 1 Width:
81 mm
Package Level 1 Depth / Length:
112 mm
Package Level 1 Height:
86 mm
Package Level 1 Gross Weight:
0.39 kg
Package Level 1 EAN:
6417019391359
Technical
Cable Cross-Section:
Cu 10 … 70 mm²
Connecting Capacity Main Circuit:
Flexible 1x Cu 10
70 mm²
Stranded 1x Cu 10
70 mm²
Conventional Free-air Thermal Current (Ith):
T = 40 °C 115 A
Conventional Thermal Current (Ithe):
Fully Enclosed 115 A
Degree of Protection:
Front IP20
Distance Between Phases:
Standard
Handle Color:
Black
Handle Type:
Knob
Handle and shaft not included
Mechanical Durability:
20000
Mounting Type:
Base mounting
Number of Poles:
3P
Operating Mode:
Front operated
Pollution Degree:
3
Position of Line Terminals:
Top In – Bottom Out
Bottom In – Top Out
Power Loss:
at Rated Operating Conditions per Pole 4.0 W
Rated Conditional Short-Circuit Current (Inc):
(125 A fuse, 415 V) 50 kA
(125 A fuse, 690 V) 10 kA
(63 A fuse, 690 V) 50 kA
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Insulation Voltage (Ui):
acc. to IEC/EN 60664-1 750 V
Rated Operational Current AC-21A (Ie):
(380 … 415 V) 100 A
(500 V) 100 A
(690 V) 100 A
Rated Operational Current AC-22A (Ie):
(380 … 415 V) 100 A
(500 V) 100 A
(690 V) 100 A
Rated Operational Current AC-23A (Ie):
(380 … 415 V) 80 A
(500 V) 60 A
(690 V) 40 A
Rated Operational Power AC-23A (Pe):
(220 … 240 V) 22 kW
(400 … 415 V) 37 kW
(500 V) 37 kW
(690 V) 37 kW
Rated Operational Voltage:
Main Circuit 750 V
Rated Short-Circuit Making Capacity (Icm):
(690 V) 3.6 kA
Rated Short-time Withstand Current Low Voltage (Icw):
for 1 s 2.5 kA
Recommended Screw Driver:
Main Circuit Hexagon 4
Special Functions:
No
Standards:
IEC 60947-3 / UL 98 / CSA C22.2 NO.4
Switches Operating Mechanism:
Mechanism on Top of the Switch
Terminal Type:
Screw Terminals
Tightening Torque:
acc. IEC 60947-1 6 N·m
Wire Stripping Length:
Main Circuit 18-21 mm
Technical UL/CSA
Maximum Operating Voltage UL/CSA:
600 V
Ampere Rating:
100 A
Horsepower Rating UL/CSA:
(110 … 120 V AC) Single Phase 5 Hp
(240 V AC) Single Phase 15 Hp
(440 … 480 V AC) Single Phase 25 Hp
(550 … 600 V AC) Single Phase 20 Hp
(220 … 240 V AC) Three Phase 30 Hp
(440 … 480 V AC) Three Phase 50 Hp
(550 … 600 V AC) Three Phase 50 Hp
Wire Stripping Length:
Main Circuit 18-21 mm
Recommended Screw Driver:
Main Circuit Hexagon 4
Tightening Torque:
acc. IEC 60947-1 6 N·m
Tightening Torque UL/CSA:
55 in·lb
