Description

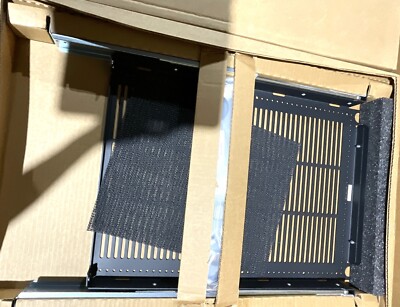

The 1USHL-115 Heavy Duty Sliding Rack Mount Shelf works in almost any 19″ Server Rack or Relay Rack. You can slide mount servers, desktops and towers. It supports up to 110 pounds and units 17.7 inches wide by 28 inches deep. It features cable management arms, equipment anti-slide bars and high quality ball-bearing slide rails. This shelf is a viable alternative to the OEM Tower to Rack Conversion kits.
Dell Part Number 1USHL-115 – A0134097 101-0914 – AA107473
Assembly Notes Removable, front equipment stop bar
Adjustable rear equipment stop bar
Optional straps for securing equipment for transport or seismic applications
Equipment Depth Maximum: 26.8″ (681 mm)
Shelf Type Vented
Rack Type 4 Post
Fixed/Sliding Sliding
Shelf Surface Area 16.5″ W x 26.8″ D (419 x 681 mm)
Finish Textured, black, powder coated
Mounting Depth Range 15.5 – 31.5″ (394 – 800 mm)
Included Hardware Cage nuts and screws
Weight Capacity 95 lbs (43kgs)
Rack Units 1U
Tool-less/Standard Standard
Overall Installation Depth 15.50 – 31″ (393mm – 787mm)
Hole Type Compatible with round, threaded, or square rack holes
RackSolutions Sliding Equipment Shelves are compatible with most 19″ EIA standard server racks. Our equipment shelves have a 95 lbs (43kgs) weight capacity and will support a wide variety of IT equipment.
Computers up to 27″ (685mm) deep can be supported on a 19 inch equipment shelf in any 4Post rack. Constructed of 14 GA steel, the RackSolutions Sliding Equipment Shelf is designed for storing your non-rack mountable equipment safely.
The slide rails extend a full 30″ (762mm) on this equipment shelf model. Cable management is a standard feature of equipment shelves providing a method to professionally route and secure the cables. Your purchase includes a removable front equipment stop bar, adjustable rear equipment stop bar, anti-slip mat, and optional straps for securing equipment for transport or seismic applications.
Manufacturer: Electronic Components
MFG Part #: 1USHL-115
