Description

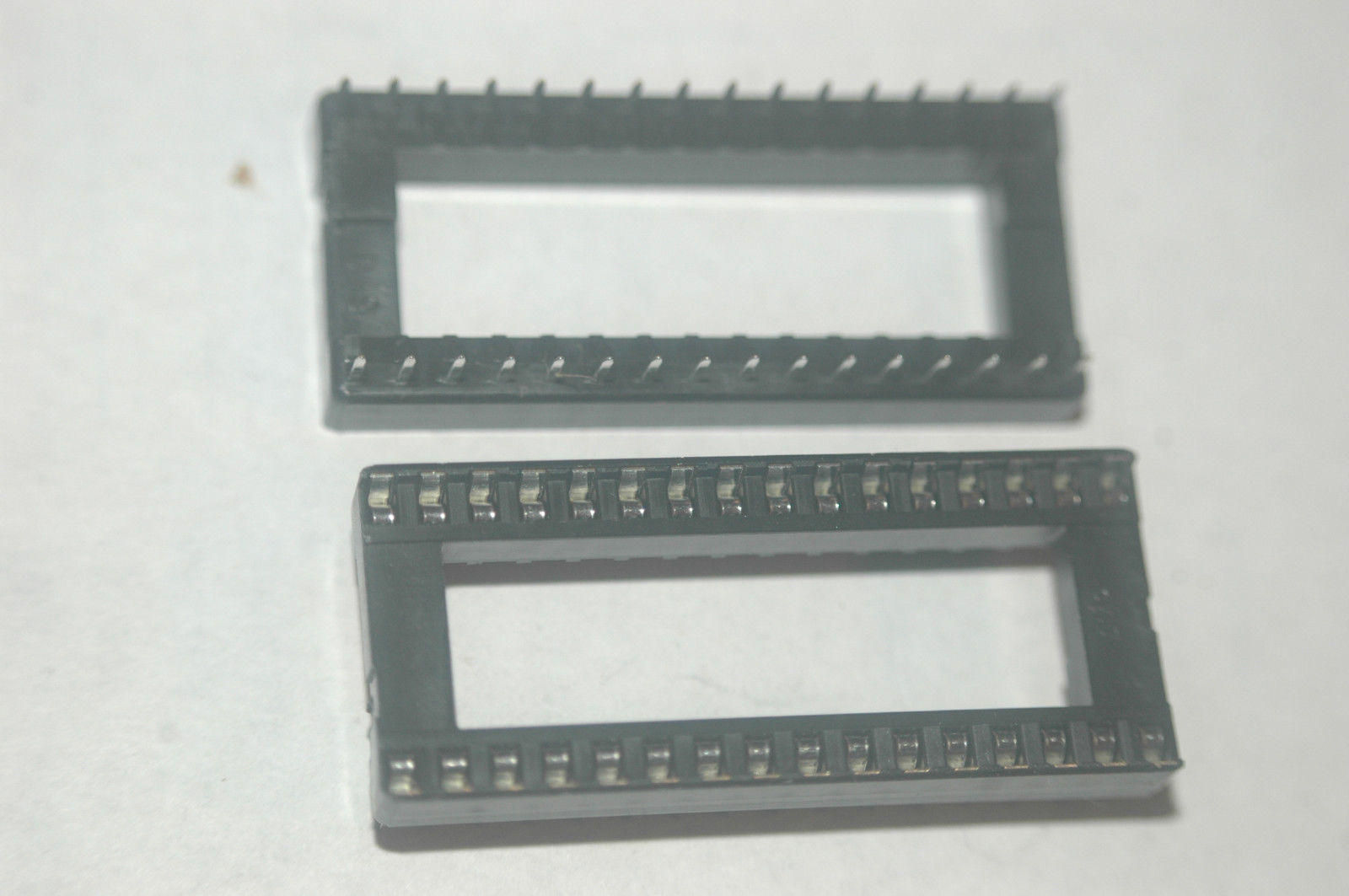

TE Connectivity / Amp 2-644018-3 IC & Component Sockets Connector, Dip Socket, 32 Pin, 600 Mil, PC Mount
Type DIP, 0.6″ (15.24mm) Row Spacing
Number of Positions or Pins (Grid) 32 (2 x 16)
Pitch – Mating 0.100″ (2.54mm)
Contact Finish – Mating Gold
Contact Finish Thickness – Mating 30µin (0.76µm)
Contact Material – Mating Beryllium Copper
Mounting Type Through Hole
Features Open Frame
Termination Solder
Pitch – Post 0.100″ (2.54mm)
Contact Finish – Post Gold
Contact Finish Thickness – Post 30µin (0.76µm)
Contact Material – Post Beryllium Copper
Housing Material Thermoplastic
Operating Temperature -55°C ~ 125°C
Termination Post Length 0.128″ (3.24mm)
Material Flammability Rating UL94 V-0
Current Rating –
Contact Resistance 30 mOhm
Manufacturer:TE Connectivity / AMP
Datasheet:2-644018-3 Product Details – TE.pdf
