Description

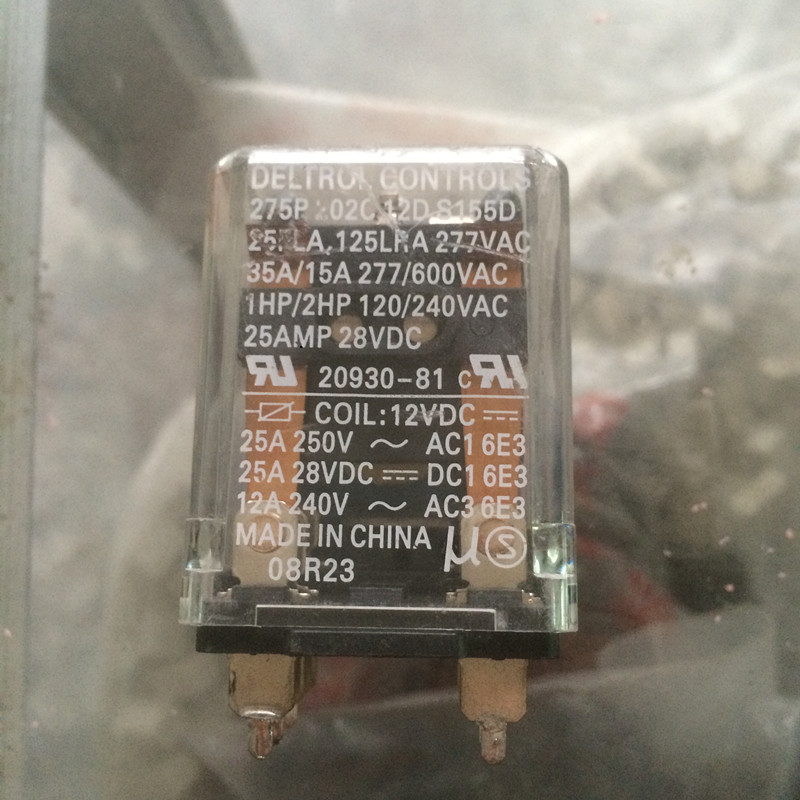

270/275 Series: 35 Amp power relay
Features
- Up to 35 Amp loads (see data sheet)
- Class F coil insulation system for 155°C total temperature
- Coil molded in Polyester for environmental protection
- Low cost alternative to small contractors
Models
- 270S: Open frame with stud & locator tab
- 275F: Flange cover
- 275T: Top mount cover
- Terminal Style:
- Printed circuit pins
- Contact Configuration:
- DPDT
- Max Contact Rating:
- 35 amps
- Detailed Contact Rating:
- 35 Amp at 277 VAC
15 Amp at 600 VAC
25 Amp at 28 VDC
1 HP at 120 VAC
2 HP at 240/277 VAC
3 HP at 480 VAC
17 FLA, 60 LRA at 300 VAC
25 FLA, 125 LRA at 240/277 VAC
35 FLA, 100 LRA at 240/277 VAC
Heavy Pilot Duty, 600 VAC
20 Amp at 277 VAC Ballast
20 Amp at 480 VAC - Semko Rating:
- 25 Amp at 250 VAC 50 Hz AC-1 25 Amp at 28 VDC DC-1 12 Amp at 240 VAC 50 Hz AC-3
- Contact Material:
- SILVER CADMIUM OXIDE
- Coil Voltage:
- 12 VDC
- Cover Type:
- Plain cover
Manufacturer:Electronic Components
Datasheet:deltrol-270-275.pdf
