Description

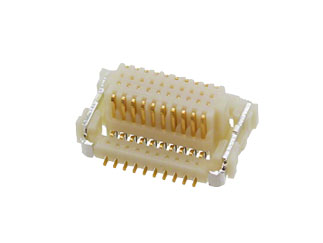

20RF-JMCS-G-1B-TF(N)(LF)(SN) JST Connector, Board to Board Receptacle 20 Position 0.5mm Solder ST Top Entry SMD T/R RoHS
Product Attributes
Category Connectors, Interconnects
Rectangular Connectors – Arrays, Edge Type, Mezzanine (Board to Board)
Mfr JST Sales America Inc.
Package Tape & Reel (TR)
Connector Type Receptacle, Center Strip Contacts
Number of Positions 20
Pitch 0.020″ (0.50mm)
Mounting Type Surface Mount
Board Guide, Solder Retention
Contact Finish Gold
Height Above Board 0.130″ (3.30mm)
Number of Rows 2
Manufacturer:JST
Datasheet:JST/Connector-eJMC.pdf
