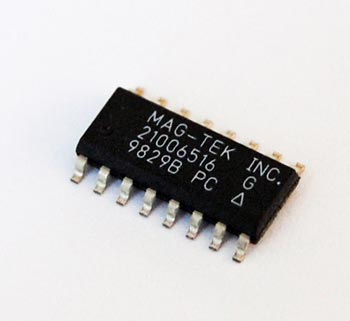

Magnetic Stripe F/2 Read/Decode Integrated Circuit
^
^The F/2F Read/Decode Integrated Circuit in intended for use in recovering F/2F encoded data received from a magnetic head.
^
^Features:
^- 150 to more than 12,000 F/2F bits per second
^- Low power: Full operation from 2.4 to 5.5 volts. Current below 2.0 mA
^- Recovers Data with as much as 30% dropout of amplitude
^- Accepts amplitudes from below 20% of ISO reference voltage to more than 250% of ISO reference voltage
^
^Maximum Ratings 9Non-Operating)
^Supply Voltage: 7.0V
^Voltage Input Range: 0 to VCC
^Output Sink Current: 10mA
^Internal Power Dissipation: 100mW
^Storage Temperature Range: -55?C to 150?C
^
^Electrical Characteristics:
^Unit operates from 2.4 to 5.5 Volts (VCC) and -30? to 70?C
^Test conditions: VCC = 5.00 Volts, Ambient Temperature = 25?C
^
^Device Current: 2.0mA max.
^Logic Low Out (@ +2.0mA): 0.4V max.
^Logic Level High (@ -2.0mA): VCC -0.5V min
^Oscillator Frequency: 1.2MHz typ.
^
^Manufactured by: Mag-Tek Inc.
^Part Number: 21006516
