Description

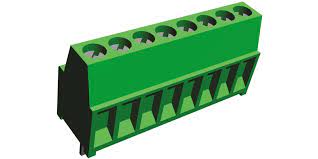

282834-8 TE Connectivity AMP Connectors Wire to Board Terminal Block Horizontal with Board 8 Position 0.100″ (2.54mm) Through Hole RoHS
Specifications
Manufacturer: TE Connectivity
Product Category: Fixed Terminal Blocks
Number of Positions: 8 Position
Pitch: 2.54 mm
Current Rating: 10 A
Voltage Rating: 150 VAC
Wire Gauge Min: 30 AWG
Wire Gauge Max: 16 AWG
Mounting Style: PCB Mount
Mounting Angle: Vertical
Packaging: Bulk
Brand: TE Connectivity
Contact Material: Brass
Contact Plating: Tin
Flammability Rating: UL 94 V-0
Housing Material: Polyamide (PA)
Product: Fixed Terminal Blocks
Product Type: Fixed Terminal Blocks
Subcategory: Terminal Blocks
Wire Gauge Range: 30 AWG to 16 AWG
Wire Orientation: Side
Unit Weight: 0.088467 oz
