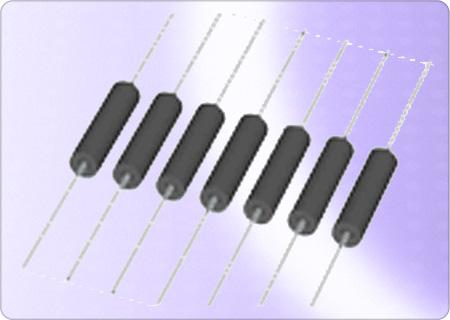

28C0236-0EW-10 Laird Ferrite Bead,EMI Filter 998ohms 100MHz 5A Axial 1 Power Line Thru-hole RoHS
Laird’s two-terminal axial lead ferrite beads provide economical filtering for differential mode EMI suppression applications. Constructed using a continuous 22 gauge conductor, these devices are able to withstand high peak currents that can destroy other surface mount devices.
Specifications
Manufacturer:Laird Performance Materials
Product Category:Ferrite Cable Cores
RoHS
Series:28C
Product:Ferrite Bead Cores
Impedance:998 Ohms
Outside Height:10 mm
Packaging:Bulk
Core Material:28
Type:Choke
Brand:Laird Performance Materials
Product Type:Ferrite Cable Cores
Factory Pack Quantity:2500
Subcategory:Ferrites
Test Frequency:100 MHz
Unit Weight:0.043200 oz
Applications: Power lines LCD-TV, Automotive, Telecom, Test Equipment
Dimension (Length – mm): 86.46
Dimension (Length – mm) 86.46
Dimension A 0.236in (6mm)
Dimension A (mm) 6
Dimension B 3.404in (86.46mm)
Dimension C 0.394in (10mm)
Dimension D 0.02
Dimension E 0.58in (14.61mm)
Dimension L1 1.5in (38.1mm)
Industries Automotive, Computer / Gaming, Telecom
MAX. DCR (OHMS) 0.01
Material Type Broad Band Material
Max. DCR 0.01
Operating Temperature -40C to +125C (including self-heating temperature rise)
Part Size Code 0236
Rated Current mA (Continuous)5000
Shielding Effectiveness Shielding Effectiveness 100
Typical Impedance (Ohm) @ 1 GHz 220
Typical Impedance (Ohm) @ 100 MHz 835
Typical Impedance (Ohm) @ 25 MHz 500
Typical Impedance (Ohm) @ 500 MHz 480
Typical Peak Impedance (Ohm) 846
Manufacturer: Electronic Components
MFG Part #: 28C0236-0EW-10
