Description

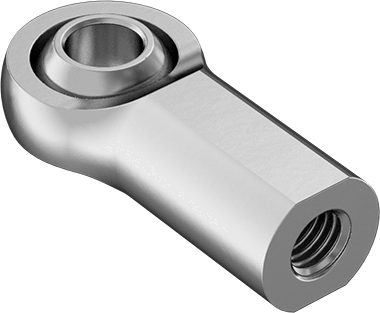

2988K34 Corrosion-Resistant Ball Joint Rod End, made of stainless steel, these rod ends provide excellent corrosion resistance. A PTFE liner allows smooth ball rotation and eliminates the need for lubrication M10 x 1.5mm Internal Thread Shank Thread Direction Right Hand RoHS
Shank Thread Size: M10 1.5 mm
ID: 10mm
ID Tolerance: -0.013mm to 0.065mm
Maximum Ball Swivel: 26
Overall Width : 27mm
Overall Thickness : 14mm
Shank Center Length : 43mm
Shank Thread Length : 21mm
Static Radial Load Capacity: 3,400 lbs.
Material: 303 Stainless Steel
Ball Material: 440C Stainless Steel
Liner Material: PTFE Plastic
Lubrication: Not Required
Rod End Type: Ball Joint
Shank Threading: Fully Threaded
Shank Gender: Female
RoHS: RoHS 3 (2015/863/EU) Compliant
