Description

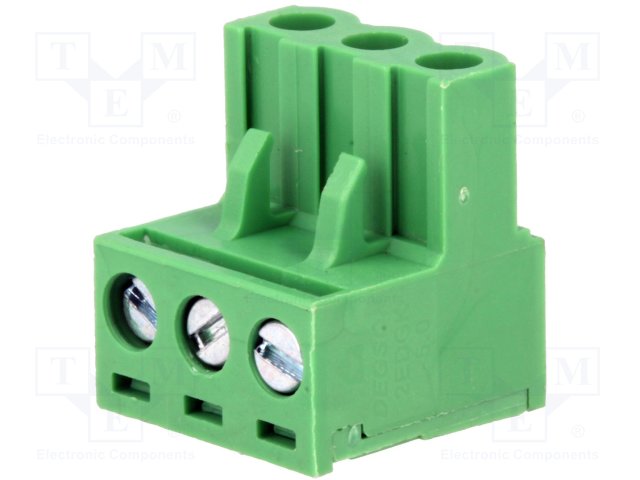

2EDGK-5.0-03P-14-00AH Degson Pluggable Terminal Block 3Pos Single pitch 5.0mm Green RoHS
ManufacturerDEGSON ELECTRONICS
Type of connectorpluggable terminal block
Contacts pitch5mm
Number of ways3
Spatial orientation straight
Connectorplug
Kind of connectorfemale
Mechanical mountingfor cable
Electrical mountingcage clamp, screw terminal
Colourgreen
Rated voltage 320V
Current rating20A
Type of pin configuration1x3
Locking systemlatch
Body materialPA66
Flammability ratingUL94V-0
Conform to the normCE, UL, VDE
Operating temperature-40 to 105C
Contact materialphosphor bronze
Number of terminals3
Wire size28AWG…12AWG
Wire cross section2.5mm2Additional information
Gross weight: 4.569 g
Manufacturer:Degson
Datasheet:Others/Degson-2EDGK.pdf
