Description

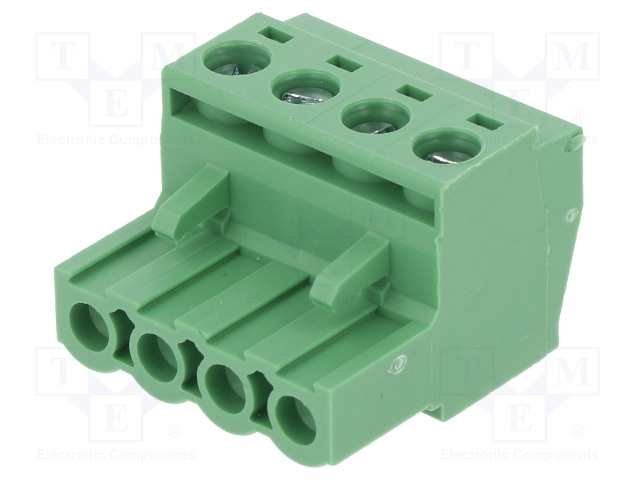

Degson 2EDGK-5.0-04P-14-1000AH Pluggable terminal block; 5mm; ways: 4; straight; plug; female Lead free / RoHS: Compliant
Manufacturer DEGSON ELECTRONICS
Type of connector pluggable terminal block
Contacts pitch 5mm
Number of ways 4
Spatial orientation straight
Connector plug
Kind of connector female
Mechanical mounting for cable
Electrical mounting cage clamp, screw terminal
Colour green
Rated voltage 320V
Current rating 20A
Type of pin configuration 1×4
Locking system latch
Body material PA66
Flammability rating UL94V-0
Conform to the norm UL
Contact plating tinned
Operating temperature -40…105°C
Contact material phosphor bronze
Number of terminals 4
Wire size 28AWG…12AWG
Wire cross section 2.5mm2 Additional information
Gross weight: 7.48 g
Manufacturer:Electronic Components
Datasheet:2EDGK-5.08-1000AH.pdf
