Description

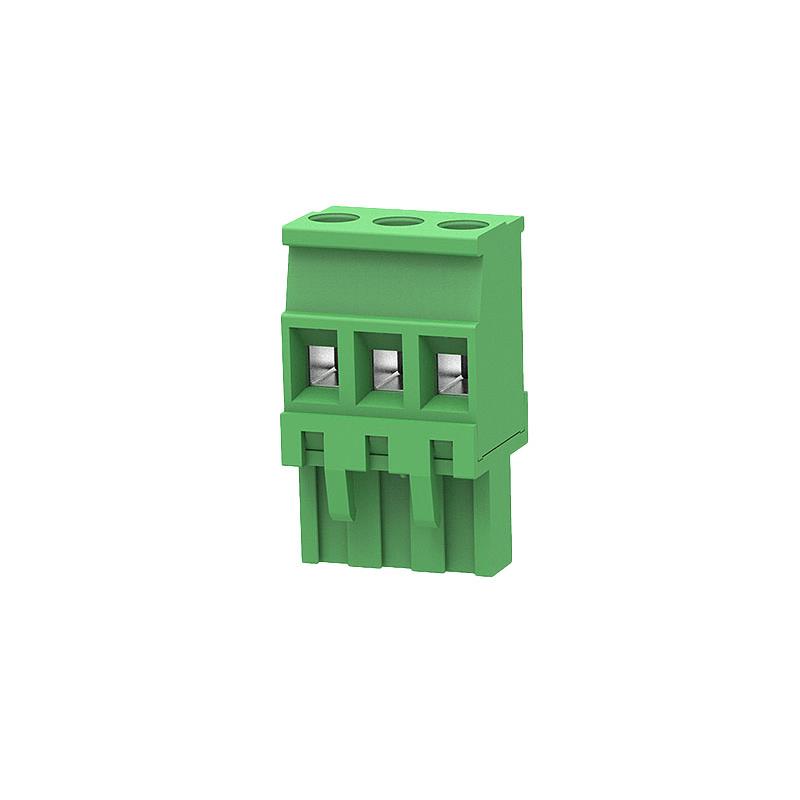

2EDGKA-5.08-03P-14-1000L(H) Degson Terminal Block 3 Position 0.200″ (5.08mm) 15 A 300V 1228 AWG Tin Retention Latches (Wire Side)Screw – Rising Cage Clamp Green Free Hanging (In-Line)
90°
Type: Plug, Female Sockets
Number of Positions: 3
Number of Levels: 1
Positions Per Level:3
Pitch: 0.200″ (5.08mm)
Termination Style: Screw – Rising Cage Clamp
Current – IEC: 18A
Voltage – IEC: 320 V
Operating Temperature: -40°C ~ 105°C
Manufacturer PN: 2EDGKA-5.08-03P-14-1000L(H)
Manufacturer: Degson
Datasheet: 2EDGKA-5.08-03P-14-1000LH.pdf
