Description

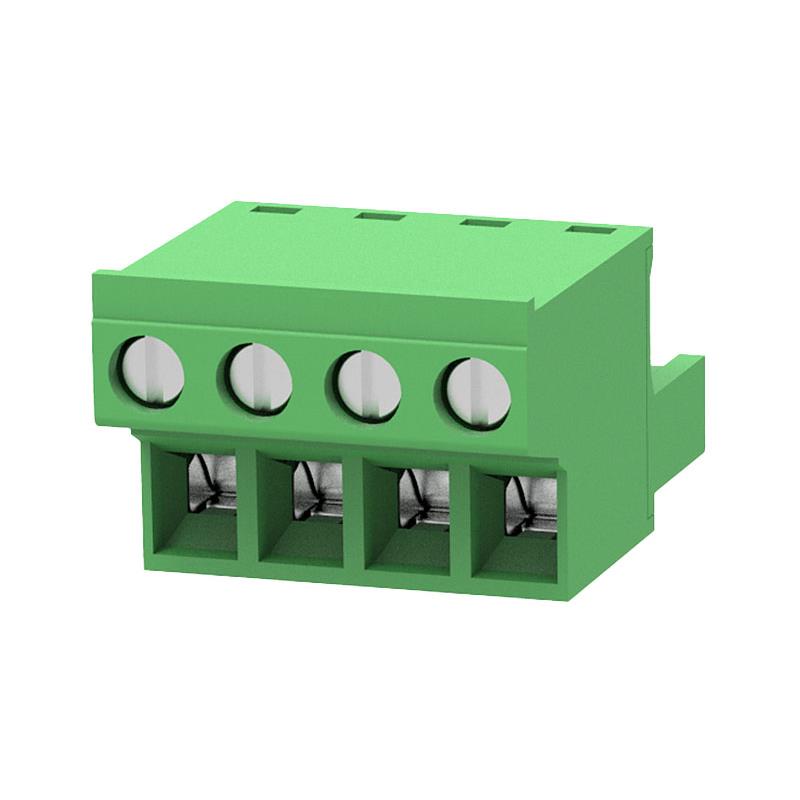

2EDGKC-5.0-04P-14-00L(H) Degson Terminal Block 4 Position 0.197″ (5.00mm) 15 A 300V 1228 AWG Tin Retention Latches (NonWire Side)Screw – Rising Cage Clamp Green Free Hanging (In-Line)
180°
Type: Plug, Female Sockets
Number of Positions: 4
Number of Levels: 1
Positions Per Level:4
Pitch: 0.197″ (5.00mm)
Termination Style: Screw – Rising Cage Clamp
Current – IEC: 20A
Voltage – IEC: 320 V
Operating Temperature: -40°C ~ 105°C
Manufacturer PN: 2EDGKC-5.0-04P-14-00L(H)
Manufacturer: Degson
Datasheet: 2EDGKC-5.0-04P-14-00LH.pdf
