Description

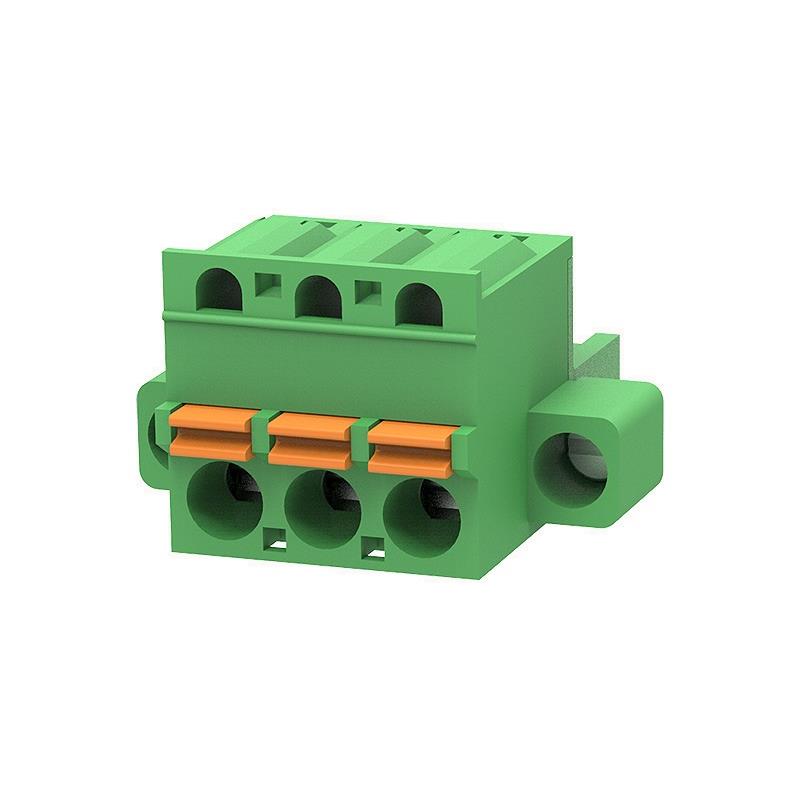

2EDGKDM-5.08-03P-14-00L(H) Degson Terminal Block 3 Position 0.200″ (5.08mm) 10A 300V 1226 AWG Tin Screwless – Push-In Spring Green Free Hanging (In-Line)
Type: Plug, Female Sockets
Number of Positions: 3
Number of Levels: 1
Positions Per Level:3
Pitch: 0.200″ (5.08mm)
Termination Style: Screwless – Push-In Spring
Current – IEC: 20A
Voltage – IEC: 320 V
Operating Temperature: -40°C ~ 105°C
Manufacturer PN: 2EDGKDM-5.08-03P-14-00L(H)
Manufacturer: Degson
Datasheet: 2EDGKDM-5.0-XXP-1Y-00L%28H%29.pdf
