Description
2SA2153-TD-E, ON SEMI, Bipolar Transistors – BJT BIP PNP 2A 50V, ROHS
Specifications
Product Category: Bipolar Transistors – BJT
Manufacturer: ON Semiconductor
RoHS: RoHS Compliant
Mounting Style: SMD/SMT

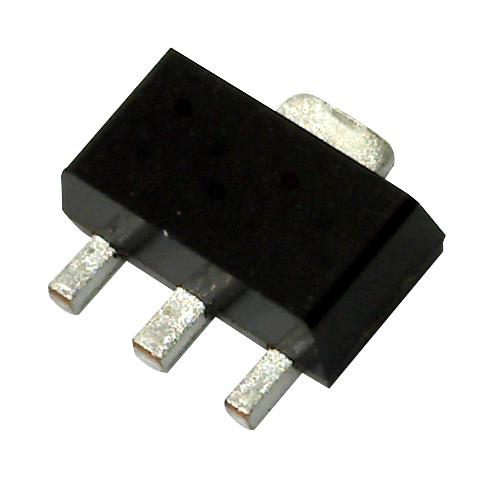

Package / Case: PCP-3
Transistor Polarity: PNP
Configuration: Single
Collector- Emitter Voltage VCEO Max: – 50 V
Collector- Base Voltage VCBO: – 50 V
Emitter- Base Voltage VEBO: – 6 V
Collector-Emitter Saturation Voltage: – 0.2 V
Maximum DC Collector Current: – 4 A
Gain Bandwidth Product fT: 420 MHz
Maximum Operating Temperature: + 150 C
Series: 2SA2153
Brand: ON Semiconductor
DC Collector/Base Gain hfe Min: 200 at – 100 mA at – 2 V
DC Current Gain hFE Max: 560 at – 100 mA at – 2 V
Minimum Operating Temperature: – 55 C
Packaging: Reel
Pd – Power Dissipation: 3.5 W
Factory Pack Quantity: 1000
Manufacturer Part Number: 2SA2153-TD-E
