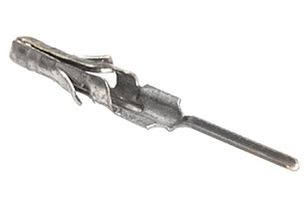

3-770060-1 TE Connectivity MINI AMP-IN PTLP/PHBZ ROHS COMPLIANT
TERMINAL, PCB MINIATURE, 18-14AWG, SOLDER, Mounting Hole Dia:3.18mm, Tab Size – Metric:-, Tab Size – Imperial:-, Terminal Material:Phosphor Bronze, Terminal Plating:Tin, Connector Type:PCB Terminal, Contact Gender:Pin, Series:Amp-In , RoHS
The 3-770060-1 is a miniature AMP-IN PCB Terminal made of phosphor bronze with bright pre-tin plated finish. This straight terminal is designed not as an electrical terminal but as a mechanical holding device to enhance soldering of hookup wires to printed circuit boards. The combination of terminal and application tooling eliminates costly manual preparation of wires prior to soldering and positions the wire to achieve reliable solder joints. Movement of the wire during soldering is restricted, providing for proper solder flow. It accepts 18 to 14AWG wire.
- Eliminates manual preparation of wires prior to soldering into PC boards
- Total height above PC board is less than most other components
- Terminal locking lance holds wire in PC board for flow soldering
- Design allows both wire and terminal to be soldered and assures proper solder flow
- Insulation support provides strain relief for wire and protection of solder joint
Applications
Industrial
Manufacturer:TE Connectivity
Datasheet:TE/595947.pdf
