Description

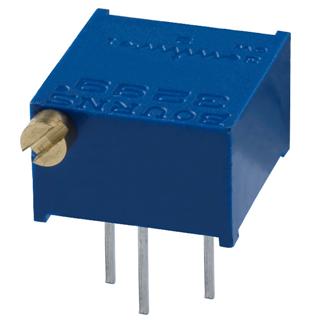

Bourns 3299P-1-102 Bourns Trimmer Resistors – Through Hole ; Power Rating:500mW; Track Resistance:1kohm; Resistance Tolerance:1 10%; Series:3299; Operating Temperature Range:-550C to +1250C; Resistor Element Material:Cermet; Temperature Coefficient:1 100ppm
Specifications
Product Category: Trimmer Resistors – Through Hole
Manufacturer: Bourns
RoHS: No
Series: 3299
Termination Style: Pin
Product: Multiturn
Resistance: 1 kOhms
Adjustment: Side Slot
Power Rating: 500 mW (1/2 W)
Tolerance: 10 %
Operating Temperature Range: – 55 C to + 125 C
Packaging: Tube
Brand: Bourns
Element Type: Cermet
Length: 10.03 mm
Mounting: Panel Mount
Product Type: Square Trimming Potentiometer
Factory Pack Quantity: 100
Taper: Linear
Tradename: Trimpot
Type: Trimmers
Width: 9.53 mm
Unit Weight: 0.035000 oz
Bourns® Trimpot® product line offers the widest array of through hole sealed trimming potentiometers in the industry. The Trimpot® product line takes full advantage of Bourns® core competencies in ceramics, thick-film printing, welding and brazing to offer reliable electronic products.
Bourns® Trimpot® trimming potentiometers perform a variety of circuit adjustments in all types of electronic equipment. The variety of physical configurations available and the ability to withstand today’s manufacturing environment offers the designer flexibility in selecting the best trimmer for the application. Around the world, trimmers are used in virtually every electronic market. Typical applications include measuring linear distance, angles or rotations in production equipment, industrial test and measurement equipment, and medical equipment.
Featurestoggle
Multiturn
Cermet
Industrial
Sealed
Manufacturer:Bourns
Datasheet:3299.pdf
