Description

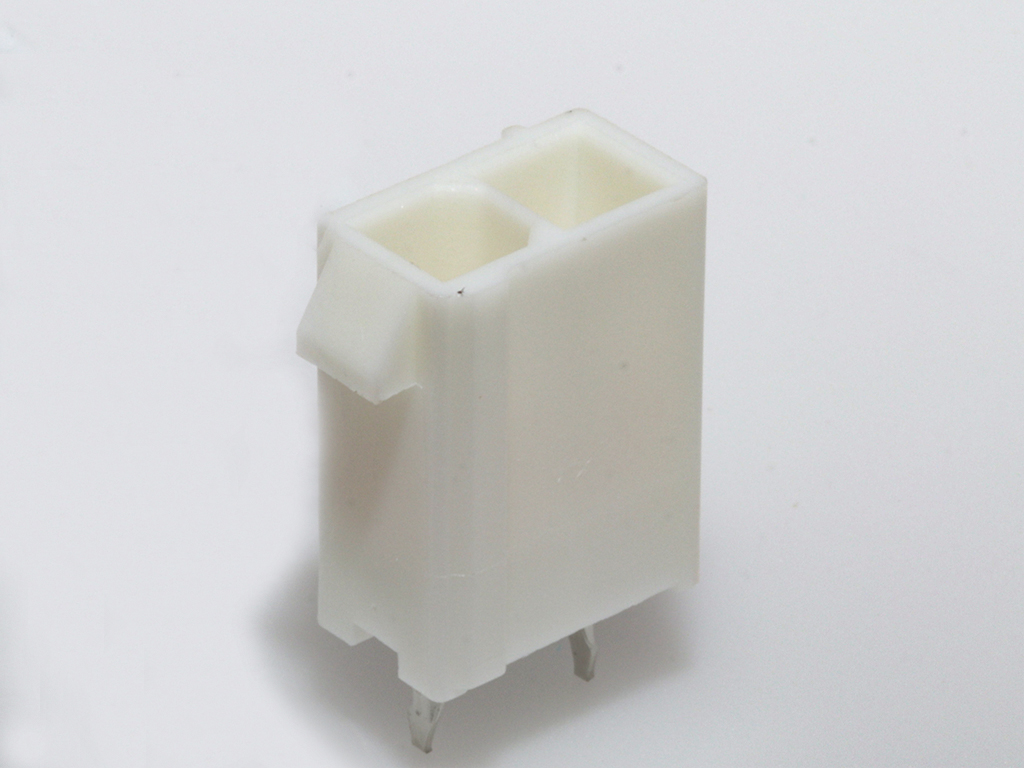

39-29-6028 Molex Connector Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 2 Circuits, without Snap-in Plastic Peg PCB Lock, Gold, Natural Through Hole RoHS
Specifications
Manufacturer: Molex
Product Category: Headers & Wire Housings
Product: Headers
Type: Power
Number of Positions: 2 Position
Pitch: 4.2 mm
Number of Rows: 2 Row
Row Spacing: 4.2 mm
Mounting Style: Through Hole
Termination Style: Solder Pin
Mounting Angle: Vertical
Contact Gender: Pin (Male)
Contact Plating: Gold
Series: 5566
Tradename: Mini-Fit Jr.
Minimum Operating Temperature: – 40 C
Maximum Operating Temperature: + 105 C
Packaging: Bulk
Current Rating: 9 A
Housing Material: Nylon
Voltage Rating: 600 V
Brand: Molex
Contact Material: Brass
Flammability Rating: UL 94 V-0
Housing Color: Natural
Product Type: Headers & Wire Housings
Factory Pack Quantity: 1200
Subcategory: Headers & Wire Housings
Part # Aliases: 39296028 A556602AGS210 0039296028
Unit Weight: 0.025857 oz
Manufacturer:Molex
Datasheet:Molex/0039296028_PCB_HEADERS.pdf
