Description

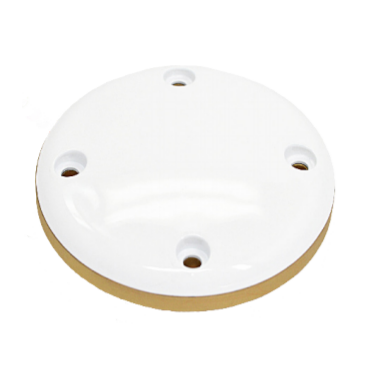

NovAtel Antcom Active L1 GPS Antenna PN# 3G15A-XT-1 NovAtel 3G15A-XT-1 GPS L1 Antenna with FRPA Footprint^
ruggedized receiving antenna for stationary and mobile applications designed
survey, industrial or military purposes. The total antenna gain is 33 dB and so signal receiving
is possible even under harsh conditions. With our Low Loss HF cabels it is possible to run the
antenna with longer cable. The antenna is available with many different options (see options).
This antenna is available with an optional magnet mount with an SMA-connector on the side
(see upper figure).
Overall Height
Between 0.580 inches and 0.690 inches
Mounting Hole Diameter
0.200 inches
Mounting Hole Quantity
4
Overall Diameter
3.500 inches
Environmental Protection
Hermetic
Coaxial Connector Series Designation
Tnc all antennas
Connector End Design
Socket all antennas
Mounting Method
Unthreaded hole
The NovAtel 3G15A-XT-1 GPS L1 antenna with FRPA footprint is part of the 3G15X-XX-X product family which uses the Global Positioning System (GPS) signal reception in the L1 frequency band. This product family is designed to the standard Fixed Reception Pattern Antenna (FRPA) mounting footprint for easy integration onto new and existing platforms. The rugged enclosure can withstand harsh environmental conditions seen in military, aerospace and other applications.
Technical Specifications
Electrical
Frequency Range (L1 GPS):1575.42 +- 12 MHz
VSWR:<2.0:1
Impedance:50 ohms
Polarization:RHCP
Mechnical & Environmental
Weight:6.3 oz
Temperature:-55 C to +85 C
Altitude:70,000 ft
Vibration:>30 Grms
Typical LNA Performance
LNA Noise Figure:3.5 dB
LNA P1dB Out:+13 dBm
LNA DC Power:(3.8 15) V < 70 mA
Limiting & Filtering
Power Handling:1 Watt CW
Manufacturer:Electronic Components
Datasheet:novatel-3G15A-XT-1-datasheet.pdf
