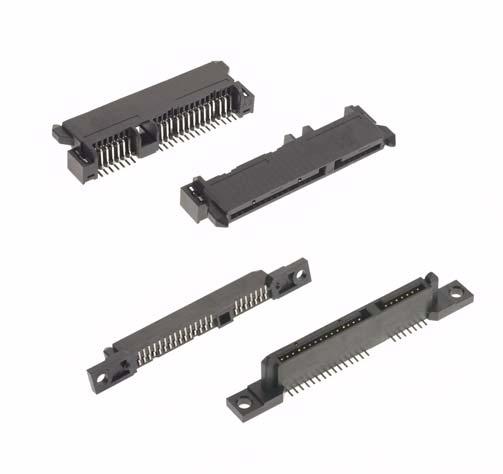

3M 5622-4100-ML Right Angle SATA Connector 22 Position Gold Plated

3M 5622-4100-ML Right Angle SATA Connector 22 Position Gold Plated

3M 5622-4100-ML SATA CONNECTOR, PLUG 22 POSITION, THROUGH HOLE

ENQUIRY!
SKU: 5622-4100-ML Categories: , Tag: Brand:

Description

3M 5622-4100-ML Right Angle SATA Connector 22 Position Through Hole Gold Plated

The 5622-4100-ML is a 22-way Serial Advanced Technology Attachment (SATA) Combo Connector with gold-plated copper alloy contacts, through hole termination and PCB mounting. This 5622 series plug/connector is high temperature thermoplastic insulated, mates with SATA receptacles and 3M Serial Attached SCSI (SAS) receptacles, 22-position signal and power combination. PCB retention clip aids manufacturing (through-hole only), EMLB contacts for “hot swap”, blind mate polarization for easy cable attachment.
  • Black colour
  • UL94V-0 Flammability rating
  • 1.5A Current rating
  • 10³MΩ Insulation resistance
  • -40 to 85°C Temperature rating

Applications

Industrial

Specifications

Manufacturer: 3M
Product Category: I/O Connectors
RoHS: RoHS Compliant
Brand: 3M Electronic Solutions Division
Product: SATA Connectors
Gender: Male
Number of Positions: 22 Position
Pitch: 1.27 mm
Contact Plating: Gold
Mounting Style: Through Hole
Termination Style: Solder Pin
Mounting Angle: Right
Color: Black
Contact Material: Copper Alloy
Current Rating: 1.5 A
Flammability Rating: UL 94 V-0
Housing Material: Thermoplastic
Insulation Resistance: 1000 MOhms
Operating Temperature Range: – 40 C to + 85 C
Packaging: Tray
Factory Pack Quantity: 1500
Part # Aliases: 05111174494 XE004225118
Manufacturer:3M Electronic Solutions
Datasheet:3M/CD2109.pdf

Additional information

Weight 0.001 lbs
