Description

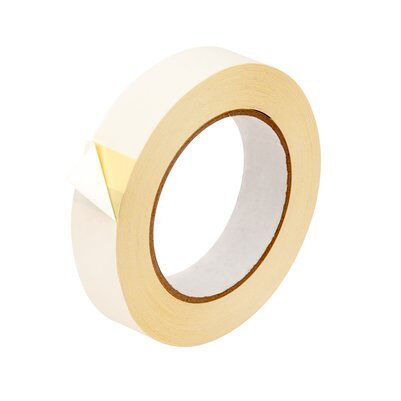

3M 75 double coated polyester electrical tape withstands higher temperature conditions than tapes with acetate film backing.
3M 75 Series Double-Coated Electrical Tape, Yellow, 36 Yard Length, Thickness: 3.8 Mil, Core Size: 3 Inch, Adhesive Type: Thermosetting Rubber, Adhesive Strength: 45 oz/Inch, Polyester Backing, Elongation: 100%, Breaking Strength: 25 lb/Inch, Dielectric Strength: 6500V, Temperature Rating: 130 deg C.
Use in bonding applications requiring a double positive insulation barrier
High dielectric strength
Conformable and exhibits excellent chemical, solvent and moisture resistance
Resists cut-through and abrasion
Withstands higher-temperature conditions than tapes with acetate cloth backings
1-mil polyester film with rubber thermosetting adhesive
3M™ Double-Coated Polyester Film Tape 75 is for use in bonding applications requiring a double positive insulation barrier. Tape has high dielectric strength and can withstand higher-temperature conditions than tapes with acetate cloth backings. Tape is conformable, exhibits excellent chemical, solvent and moisture resistance and resists cut-through and abrasion.
Double-coated, 1-mil polyester film with rubber thermosetting adhesive.
Manufacturer Part Number: 75-1X36YD
3M Electronic Solutions
