Description
400BXW120MEFR18X30 Rubycon Aluminum Electrolytic Capacitors 120uF 400V 20% Radial Can 12000Hrs @ 105C RoHS
Specifications
Manufacturer: Rubycon
Product Category: Aluminum Electrolytic Capacitors – Radial Leaded
Product: General Purpose Electrolytic Capacitors
Termination Style: PC Pin
Capacitance: 120 uF
Voltage Rating DC: 400 VDC
Maximum Operating Temperature: + 105 C
Diameter: 18 mm
Lead Spacing: 7.5 mm
Length: 30 mm
Life: 12000 Hour
Tolerance: 20 %
Ripple Current: 840 mA
Minimum Operating Temperature: – 40 C
Lead Style: Cut
Series: BXW
Brand: Rubycon
Dissipation Factor DF: 0.2
Product Type: Electrolytic Capacitors
Factory Pack Quantity: 200
Subcategory: Capacitors

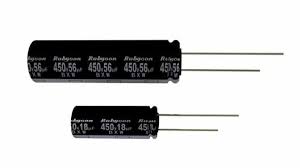

The 400BXW120MEFR18X30 is part of the BXW series of capacitors from Rubycon Corporation. It is a 120uF 400VDC Aluminum Electrolytic Capacitor with Radial leads. It has a tolerance of 20% and a 12000 hour lifetime. Size is 18mm dia x 30mm and temperature of operation is from -40 to 105C
Manufacturer: Electronic Components
MFG Part #: 400BXW120MEFR18X30
