Description
HEYClip™ Locking Releasable Wire Clips Adjustable

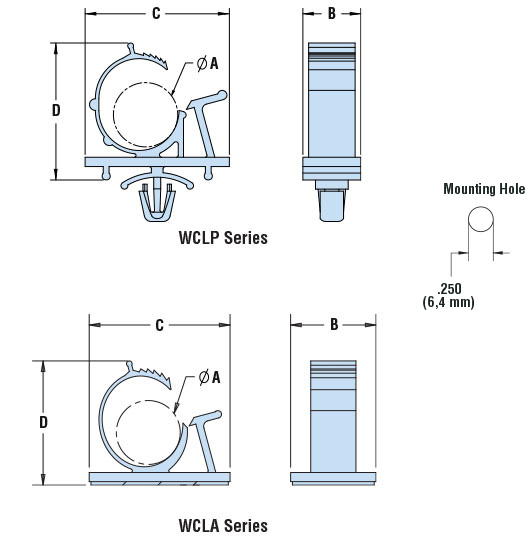

| MAXIMUM BUNDLE DIAMETER RANGE A |
PART NO. | DESCRIPTION | OVERALL HEIGHT D* |
FOOTPRINT B x C |
|||||
|---|---|---|---|---|---|---|---|---|---|
| Minimum | Maximum | Natural | |||||||
| in. | mm. | in. | mm. | in. | mm. | in. | mm. | ||
WCLP Series – Arrowhead Mount |
|||||||||
| .47 | 11,9 | .55 | 14,0 | 4335 | WCLP 562 | 1.17 | 29,8 | .50 x 1.24 | 12,7 x 31,5 |
| .58 | 14,7 | .75 | 19,1 | 4336 | WCLP 750 | 1.36 | 34,5 | .50 X 1.48 | 12,7 Xx37,6 |
WCLA Series – Adhesive Mount** |
|||||||||
| .22 | 5,5 | .26 | 6,5 | 4323 | WCLA 258 | .74 | 18,8 | .65 x .85 | 16,5 x 21,6 |
| .31 | 7,9 | .41 | 10,3 | 4324 | WCLA 406 | .90 | 22,8 | .75 x 1.00 | 19,1 x 25,4 |
| .47 | 11,9 | .56 | 14,3 | 4325 | WCLA 562 | 1.12 | 28,5 | .75 x 1.24 | 19,1 x 31,5 |
| .58 | 14,7 | .75 | 19,1 | 4326 | WCLA 750 | 1.32 | 33,6 | .75 x 1.50 | 19,1 x 38,1 |
| .87 | 22,2 | 1.00 | 25,4 | 4327 | WCLA 1000 | 1.78 | 45,3 | 1.00 x 1.97 | 25,4 x 50,1 |
Heyco WCLP Series
- Gather and route wires.
- Adjust to diameter needed to bundle.
- Push mount design allows for fast installation.
WCLA Series
- Lock securely and easily. Re-open for routing changes.
- Ratcheting clip holds bundle securely in place.
- Good for high vibration applications. Once closed the clip will not open until the tab is released.
QuickSpecs
| Material | Nylon 6/6 |
|---|---|
| Flammability Rating | 94V-2 |
| Temperature Range | -40°F (-40°C) to 185°F (85°C |
Manufacturer Part Number: 4323
Heyco
