Description

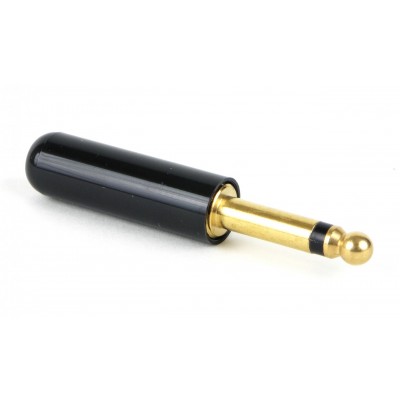

Switchcraft 440Z Phone Connector 6.35mm (0.250″, 1/4″) Headphone Phone Plug Mono Connector Screw
440Z from Switchcraft MIL Type 1/4″” phone plug designed for high quality communication equipment to meet military requirements. 2-Conductor, Screw Terminals, Black Handle. Switchcraft 440Z is similar to Switchcraft 440 (M642/4-1) but it is not marked with the mil number M642/4-1 and is not mil qualified. Similar to the former PJ055B
Part Status:Obsolete:
Connector Type:Phone Plug:
Gender:Male:
Signal Lines:Mono:
Industry Recognized Mating Diameter:6.35mm (0.250″, 1/4″) – Headphone:
Actual Diameter:0.250″ (6.35mm):
Number of Positions/Contacts:2 Conductors, 2 Contacts:
Internal Switch(s):Does Not Contain Switch:
Mounting Type:Free Hanging (In-Line):
Termination:Screw:
Shielding:Shielded:
Features:Internal Interlock:
Mating Length/Depth:1.218″ (30.90mm):
Body Color:Gold, Black:
Includes:4 pcs – 1 Connector, 1 Handle, 2 Screws
Manufacturer Part Number: 440Z
