Description

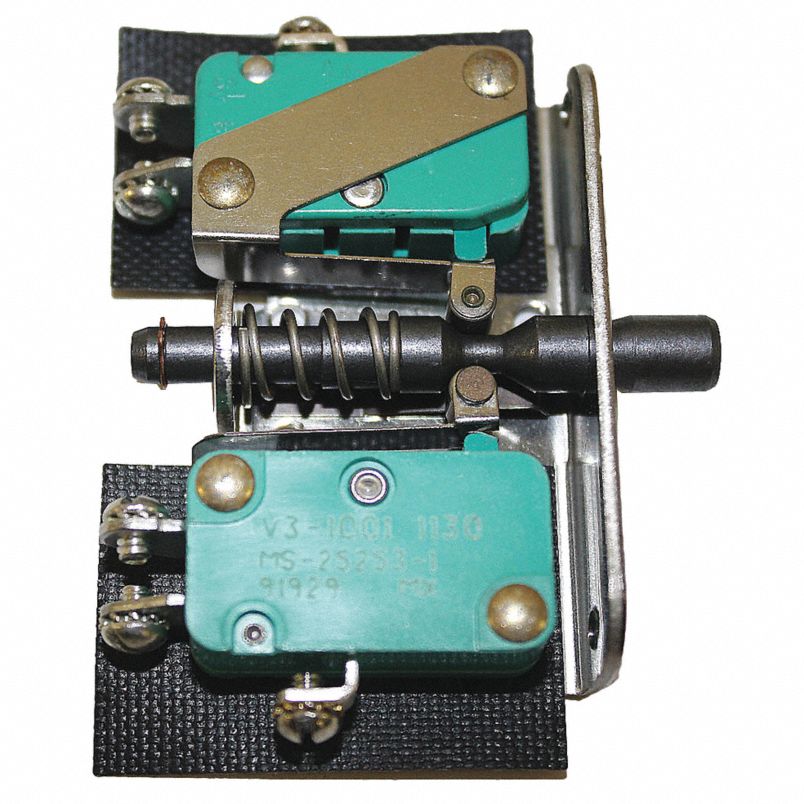

4AC55 Honeywell Safety Interlock Switch, SPDT, Screw, 250 V, 15 A MICRO SWITCH Basic Switches: AC Series, Door Switch, Single Pole Double Throw (SPDT), 5 A at 250 Vac, Steel Rod Actuator, Screw Termination
This door switch is engineered to help protect personnel and equipment by automatically cutting power when the service door or drawer is opened. The rod actuator can also be hand-pulled to test a circuit with the power on. The switch features a steel actuator and stainless steel bracket set.
Product Highlights:
Automatically cuts power when service door or drawer is opened
Choice of momentary, maintained or pull-to-cheat actuation
Versatile mounting bracket for side or end mounting
Current rating ranges from 5 A to 25 A
Available with one or two SPDT switches
UL recognized versions available
Choice of termination
Potential Applications:
Appliances
Vending machines
Office equipment
Computer/business equipment
Test instruments
Medical/dental equipment
Communications equipment
HVAC equipment
Item: Door Switch
Includes: Stainless Steel Bracket
HP: 1/3hp @ 125/250V AC
Contact Form: (2) SPDT
Switch Function: 3 Position, Push Momentary, Pull Maintained
Terminals: Screw
AC Contact Rating: 15A @ 125/250V AC
DC Contact Rating: 1/2A @ 125V DC, 1/4A @ 250V DC
Actuator Material: Steel
Height: 1.5 in
Type of Actuator: Push Rod Plunger
Operating Temp. Range: -67 Degrees to 185 Degrees F
Length: 1.5 in
Depth: 0.5 in
Length (Straight Wireway): 1.5 in
Country of Origin (subject to change): Mexico
Manufacturer: Electronic Components
MFG Part #: 4AC55
