Description

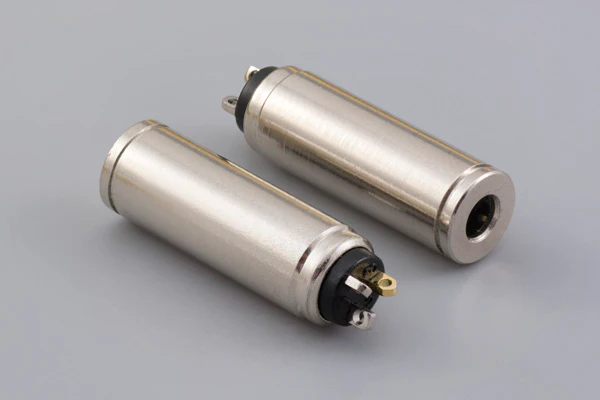

50-00041 by Tensility International Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder Eyelet(s) 3.50mm (0.141″, 1/8″, Mini Plug)
Connector, 4C audio jack, 3.5×7.8xL25.8 mm, brass, nickel plated, molding style
Specifications
EU RoHS Compliant with Exemption
Type 3.5MM Audio Jack
Gender F
Number of Contacts 4
Number of Terminals 4
Number of Ports 1
Termination Method Solder Lug
Body Orientation Straight
Insulation Resistance (MOhm) 100
Maximum Contact Resistance (mOhm) 50
Minimum Operating Temperature (C) -25
Maximum Operating Temperature (C) 70
Mating Cycle (Cycles) 5000
Shell Material Brass
Shell Plating Nickel
Housing Color Black
Product Diameter (mm) 7.8
Product Length (mm) 25.8
Contact Material Phosphor Bronze
Housing Material Polyoxymethylene
Mounting Cable Mount
Manufacturer Part Number: 50-00041
