Description

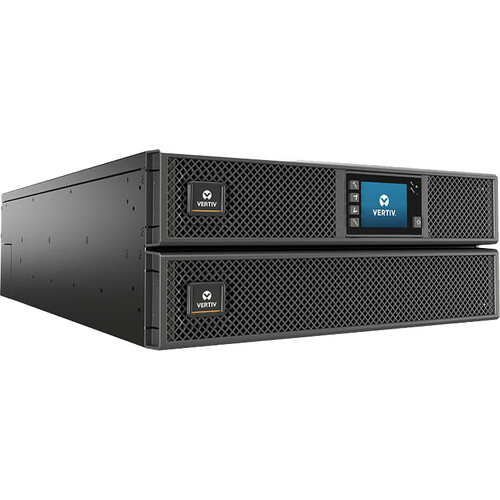

The Vertiv Liebert GXT5-5000HVRT5UXLN UPS is an online double conversion, rack/tower UPS designed for server rooms, network closets, and other distributed IT applications, this GXT5 5000HVRT5UXLN UPS 208V Online Double Conversion Rack/Tower from Liebert offers solid power capacity in a small rack/tower convertible form factor. This UPS has an output of 5000VA / 5000W and an input of 208 VAC at 60 Hz, allowing for the two programmable NEMA L6-20R and NEMA L6-30R outlets to reliably distribute power for optimum battery usage. Output is adjustable to 200/220/230/240 VAC. The primary input connection of this UPS are two hard-wire terminals with L-L-G wiring.
GXT5-5000HVRT5UXLN 5000VA/5000W 5U 208VAC L-L-G PERP UPS – General Purpose GXT – 1 Packaged Quantity – Double Conversion Online UPS – Hardwired – Hardwired – IEC 60320 C19 – IEC 60320 C13 – 2 x IEC 60320 C19 Receptacle Detail – 6 x IEC 60320 C13 Receptacle Detail – 0 ns
The Vertiv Liebert GXT5 uninterruptible power supply (UPS) protects critical equipment against outages and every type of power disturbance. This 5kVA online double conversion UPS offers continuous power conditioning in centralized and edge locations. With high power factor (0.9-1.0), it allows more connected loads saving space and costs. This tower/rack mount UPS has a built-in Vertiv RDU101 communications card for remote monitoring to help you make more informed decisions and faster event resolution. With the free Vertiv Power Insight software, you can consolidate your view of up to 100 distributed UPS units providing simple notification of status and events in a single pane of glass. This 208V in/ 208V out single phase UPS has scalable runtime options with matching external battery cabinets to give extra runtime during an outage to support critical equipment. This battery backup is ENERGY STAR 2.0 certified and comes with an intuitive gravity sensing full-color LCD display.
USB Connection
Basic monitoring of the GTX5 and unattended controlled shutdown of your computer in case of a power failure can be done using the Liebert Power Assist software via the USB port.
Modes of Operation
Normal Mode: When utility power is normal, Normal mode employs the rectifier and inverter to provide voltage and frequency stabilized power to the load. The charger charges the battery in normal mode. On the front panel display, the run-indicator (green) is ON, the alarm indicator is OFF, and the buzzer is silent
Bypass Mode: Bypass mode supplies power to the load from the bypass source (utility power) if an overload or fault occurs during normal operation. On the front panel display, the run indicator (green) is ON, the alarm indicator (yellow) is ON, and the buzzer beeps once every two seconds. The LCD Flow screen displays On Bypass.
Battery Mode: Battery mode supplies battery power to the load if utility power fails or if the utility voltage goes outside of the permissible range. On the front panel display, the run indicator (green) is ON, the alarm indicator (yellow) is ON, and the buzzer beeps once each second. The LCD Flow screen displays On Battery
Eco Mode: The energy-saving ECO mode reduces power consumption by powering the load via bypass if the bypass voltage is normal or by powering the load via the inverter when the bypass voltage is abnormal. You can use ECO mode to power equipment that is not sensitive to power grid quality to via bypass and reduce power consumption.
Maintenance Bypass Mode: Used in the unlikely event that the UPS requires maintenance or repair, maintenance bypass mode powers the connected equipment with utility power while electrically isolating the internal UPS components.
