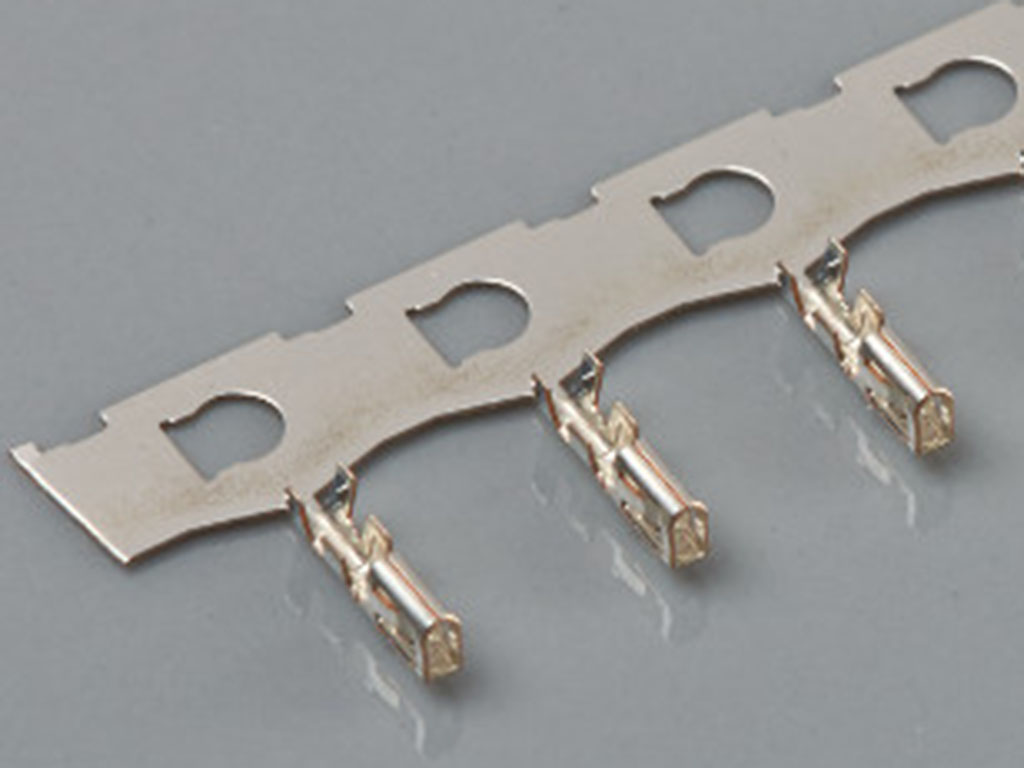

501334-0000 Molex Connector 1.00mm Pitch, Pico-Clasp Female Crimp Terminal, Tin Plating, 28-32 AWG, Reel RoHS
The 501334-0000 is a Pico-Clasp 1.00mm pitch wire-to-board female socket crimp terminal made of phosphor bronze with tin plated finish. This 501334 series female crimp terminal accepts 32 to 28AWG wire. The socket terminal mates with 501331 PCB header for Pico-Clasp and 104051 PCB header for IllumiMate. It can be used with 501330 crimp housing for Pico-Clasp and 104050 crimp housing for IllumiMate. The terminal is suitable for signal applications.
Product Range: Pico-Clasp 501334 Series
Contact Gender: Socket
Contact Termination Type: Crimp
Wire Size AWG Max: 28AWG
Contact Plating: Tin Plated Contacts
For Use With: Molex Pico-Clasp 501330 & IllumiMate 104050 Series Housing Connectors
Wire Size AWG Min: 32AWG
Contact Material: Phosphor Bronze
Part # Alias: 5013340000
Manufacturer: Molex
MFG Part #: 501334-0000
