Description

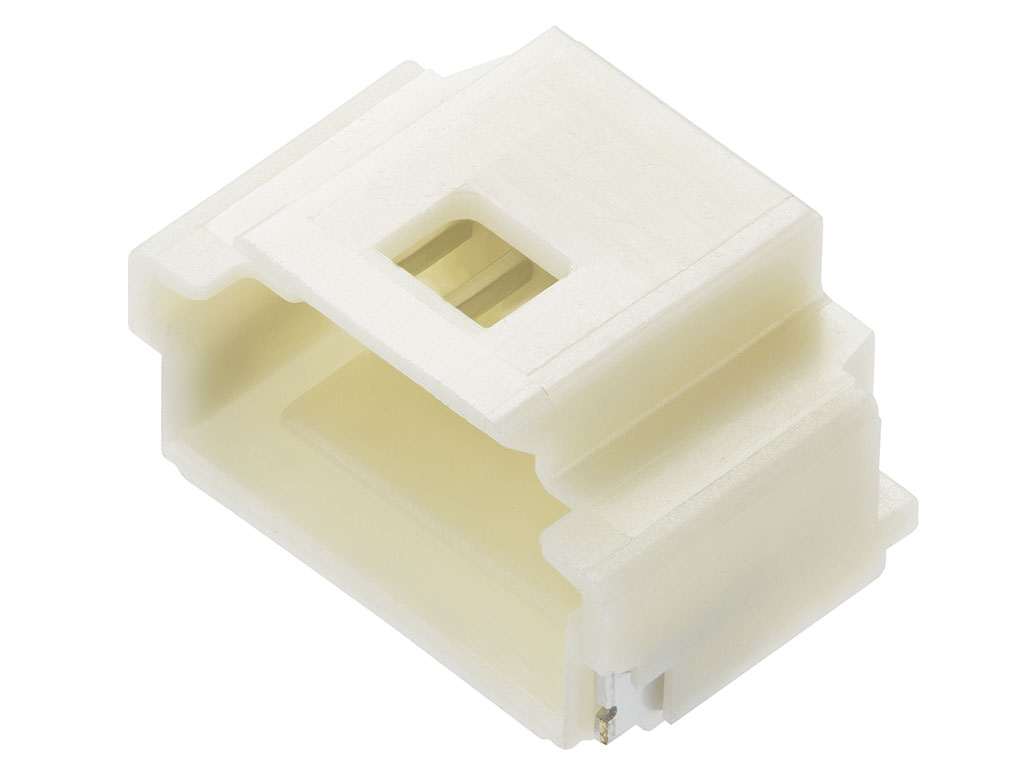

501568-1207 Molex Headers & Wire Housings Connector 1.00mm Pitch, Pico-Clasp PCB Header, Single Row, Right-Angle, Surface Mount, Tin Plated, with Inner Positive Lock, 12 Circuits Side Entry SMD RoHS
Technical Attributes
Base/Housing Material Nylon 6/6
Body Orientation Right Angle
Contact Material Brass
Contact Plating Tin Over Nickel
Gender HDR
Housing Color Natural
Lead Finish Tin
Mounting Surface Mount
Operating Temperature -40 to 85C
Pitch 1 mm
Product Dimensions 14 x 5.35 x 4.7 mm
Product Length 14 mm
Termination Method Solder
Part # Alias: 5015681207
Manufacturer: Molex
MFG Part #: 501568-1207
