Description

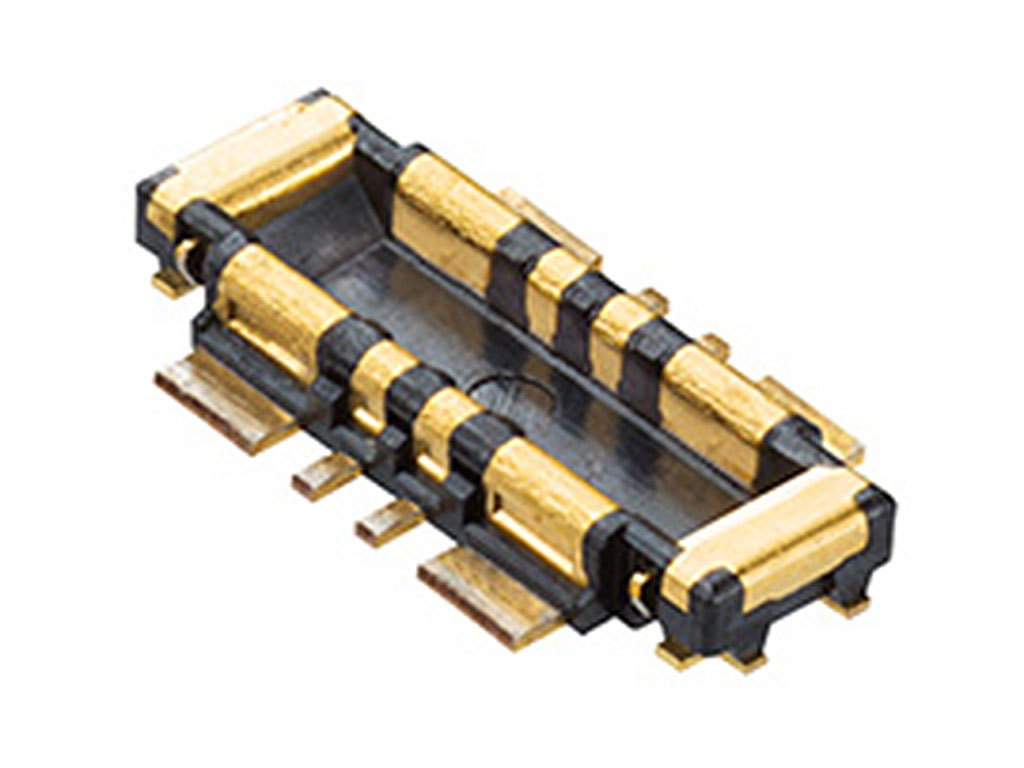

505476-1010 Molex Board to Board & Mezzanine Connectors ^Conn Board to Board PL 4Power/6Signal POS 0.4mm Solder ST SMD Embossed T/R
Specifications
Manufacturer: Molex
Product Category: Board to Board & Mezzanine Connectors
Product: Plugs
Number of Positions: 10 Position
Pitch: 0.4 mm
Number of Rows: 2 Row
Termination Style: Solder
Mounting Angle: Vertical
Stack Height: 0.6 mm
Current Rating: 500 mA, 5 A
Voltage Rating: 50 V
Minimum Operating Temperature: – 40 C
Maximum Operating Temperature: + 85 C
Contact Plating: Gold
Housing Material: Liquid Crystal Polymer (LCP)
Series: 505476
Packaging: Cut Tape
Packaging: Reel
Application: Power, Signal, Board to Board
Brand: Molex
Flammability Rating: UL 94 V-0
Mounting Style: SMD/SMT
Product Type: Board to Board & Mezzanine Connectors
Factory Pack Quantity: 6000
Subcategory: Board to Board & Mezzanine Connectors
Tradename: SlimStack
Unit Weight: 0.000217 oz
SlimStack Board-to-Board Plug, 0.40mm Pitch, Battery Series, 0.60mm Mated Height, 2.00mm Mated Width, 10 Circuits, 10.0A
Manufacturer: Molex
MFG Part #: 505476-1010
