Description

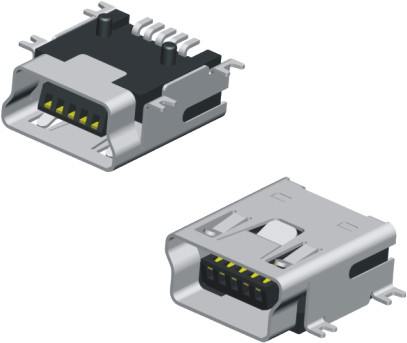

NELTRON 5075BMR-05-SM MINI USB CONNECTOR B SOCKET 5WAYS R/A 30V 1.0A SMD ROHS
| Current rating | 1.0A AC/DC |
| Voltage rating | 30V AC / DC |
| Contact resistance | 20m ohm. max. |
| Insulation resistance | 1000M ohm. min. at 100V DC |
| Withstand voltage | 750V AC for one minute |
| Operating Temperature range | -40°C ~ +105°C |
| Meterial and Plating | 1.Housing: Hight Temperature Material (UL94V-0) 2.Contact: Phosphor Bronze 3.Plating: Gold Plated 4.Shell: Brass ,Tin Plated |
Manufacturer Part Number: 5075BMR-05-SM
Neltron
