Description

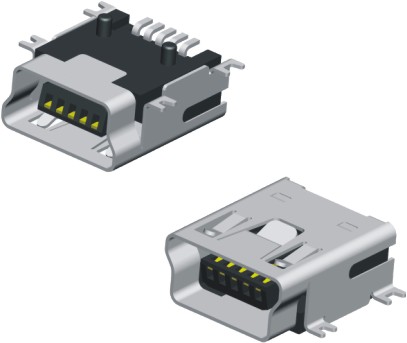

Neltron 5075BMR-05-SM TR Mini USB Connector B Socket 5Ways R/A SMD Type.
Current rating 1.0A AC/DC
Voltage rating 30V AC / DC
Contact resistance 20m ohm. max.
Insulation resistance 1000M ohm. min. at 100V DC
Withstand voltage 750V AC for one minute
Operating Temperature range -40C ~ +105C
Meterial and Plating 1.Housing: Hight Temperature Material (UL94V-0)
2.Contact: Phosphor Bronze
3.Plating: Gold Plated
4.Shell: Brass ,Tin Plated
Manufacturer:Neltron
Datasheet:5075BMR-05-SM-CR.pdf
