Description

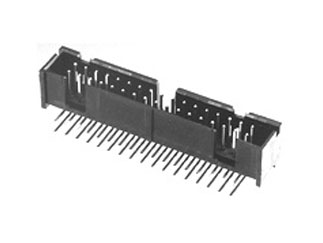

5103310-3 TE Connectivity Connector Header AMP-LATCH 16 Position 2.54 mm Pitch Dual Row Right Angle Pin Header Through Hole, RoHS
Specifications
Manufacturer: TE Connectivity
Product Category: Headers & Wire Housings
Product: Headers
Type: Shrouded
Number of Positions: 16 Position
Pitch: 2.54 mm
Number of Rows: 2 Row
Row Spacing: 2.54 mm
Termination Style: Solder Pin
Mounting Angle: Right Angle
Contact Gender: Pin (Male)
Contact Plating: Gold
Termination Post Length: 3.43 mm
Series: AMP-LATCH
Tradename: AMP-LATCH
Minimum Operating Temperature: – 65 C
Maximum Operating Temperature: + 105 C
Packaging: Tube
Current Rating: 1 A
Housing Material: Thermoplastic
Brand: TE Connectivity
Contact Material: Copper Alloy
Flammability Rating: UL 94 V-0
Housing Color: Black
Insulation Resistance: 5000 MOhms
Product Type: Headers & Wire Housings
Factory Pack Quantity: 90
Subcategory: Headers & Wire Housings
Unit Weight: 0.109843 oz
Manufacturer: Electronic Components
MFG Part #: 5103310-3
