Description

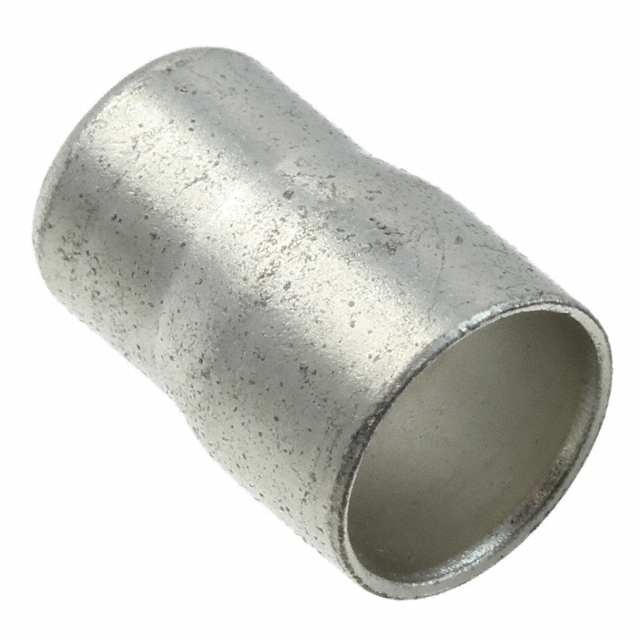

TE Connectivity 520437-1 Terminals SDL Connector / FERRULE 5.69-6. 20MM CABLE Polycarbonate Gray RoHS
8 Position SDL (Shielded Data Link) Ferrule Connector
TE Connectivity 50 Series Round Cable SDL Plug Connectors
The SDL (Shielded Data Link) connector meets industry’s demand for a cost effective shielded connector. This connector provides EMI/RFI protection for a wide range of applications from critical medical systems to point-of-sale equipment, including computers, computer peripherals, video games and process control equipment.
These 50 series round cable SDL IDC plug connectors are for use with round shielded 7 stranded cable and are pre-loaded with IDC contacts on a 1.27mm centreline. The housing design of these SDL IDC plug connectors features locking latches, positve polarization, a primary strain relief that is applied to the cable foil or shield and a secondary strain relief for the main cable conductors. The top and bottom shielding shells and ferrules for these SDL IDC plug connectors must be purchased separately.
Specifications
Manufacturer: TE Connectivity
Product Category: Terminals
RoHS: RoHS Compliant Details
Product: Ferrules
Gender: Male
Color: Smoke Gray
Tradename: AMPLIMITE
Brand: TE Connectivity / AMP
Current Rating: 1.5 A
Material: Polycarbonate (PC)
Packaging: Bulk
Qualification: Commercial
Factory Pack Quantity: 1
Voltage Rating: 30 V
Manufacturer:TE Connectivity / AMP
Datasheet:520437-1.pdf
