Description

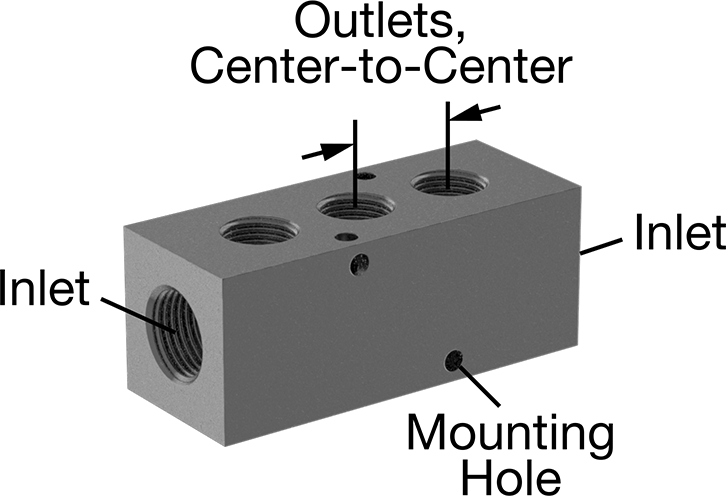

5469K111 Distribute air or fluid to multiple locations from a single supply source with these manifolds. They are also known as headers. They have mounting holes, so you can mount from the top or side. Anodized Aluminum Right-Angle Flow Manifold, 3 Outlets on One Side, 1/4 NPT x 1/8 NPT RoHS
For Use With Air, Water, Hydraulic Fluid
ShapeManifold
Manifold TypeSingle Section
Flow PatternRight Angle
TypeReducer
Outlet LocationOne Side
MaterialAnodized Aluminum
Number of Inlets2
Number of Outlets3
Connection
TypePipe
StyleThreaded
Inlet
Pipe Size1/4
click to learn more about 1/4
Pipe Connection TypeThreaded
Thread TypeNPT
click to learn more about NPT
GenderFemale
Dash Size04
Outlet
Pipe Size 1/8
click to learn more about 1/8
Pipe Connection Type Threaded
Thread Type NPT
click to learn more about NPT
Gender Female
Dash Size 02
Length 2 1/2″
Width 1″
Height 1″
Outlet Center -to-Center 3/4″
Outlet SpacingStandard
ColorBlack
Maximum Pressure
Air1,000 psi @ 72 F
Water1,000 psi @ 72 F
Hydraulic Fluid3,000 psi @ 72 F
Maximum VacuumNot Rated
Temperature Range-10 to 200 F
Mount TypeScrew On
Mounting Hole
ThreadingUnthreaded
Diameter 0.17″
For Screw SizeNo. 8
Mounting Hardware IncludedNo
RoHSRoHS 3 (2015/863/EU) Compliant
REACHREACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
DFARSSpecialty Metals COTS-Exempt
Manufacturer: Electronic Components
MFG Part #: 5469K111
