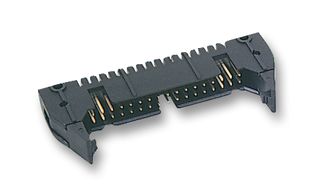

5499922-3 Conn Ejector Header HDR 16 POS 2.54mm Solder ST Thru-Hole RoHS Manufacturer: AMP/TYCO
The 5499922-3 is a part of 5499922 series AMP-LATCH 16 position through-hole dual row straight pin header.
Features:
Product Type Features:
Product Line: AMP-LATCH
Profile: Standard
PCB Mounting Orientation: Straight
PCB Mount Retention: Without
Housing Style: 4-Sided
Post Size (mm [in]): 0.64 [.025]
Latch Type: Long
Mating Connector Lock Type: Latch
Termination Features:
Termination Post Length (mm [in]): 2.79 [0.110]
Solder Tail Contact Plating: Tin
Body Features:
Header Type: Universal Ejection Pin Headers
Number of Positions: 16
Centerline, Matrix (mm [in]): 2.54 x 2.54 [.100 x .100]
Housing Features:
Connector Style: Header – Pin
Mating Alignment Type: Center, Dual Polarizing Bar, Military
Housing Material: Thermoplastic – GF
UL Flammability Rating: UL 94V-0
Housing Color: Black
Industry Standards:
RoHS compliant, ELV compliant
Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder capable to 265°C
Conditions for Usage:
Temperature Rating: Standard
PCB Thickness, Recommended (mm [in]): 1.57 [0.062]
Specifications
Manufacturer: TE Connectivity
Product Category: Headers & Wire Housings
RoHS: RoHS Compliant
Brand: TE Connectivity / AMP
Product: Headers
Type: Universal Ejection Pin
Number of Positions: 16 Position
Pitch: 2.54 mm
Number of Rows: 2 Row
Mounting Style: –
Termination Style: Through Hole
Mounting Angle: Vertical
Contact Gender: Pin (Male)
Contact Plating: Gold
Series: AMP-LATCH
Tradename: AMP-LATCH
Contact Material: Brass, Phophor Bronze
Contact Type: –
Flammability Rating: UL 94 V-0
Housing Material: Thermoplastic
Latching Type: Ejection
Packaging: Tray
Qualification: Commercial
Row Spacing: 2.54 mm
Factory Pack Quantity: 42
Termination Post Length: 2.79 mm
Manufacturer:TE Connectivity / AMP
Datasheet:ENG_CVM_5499922-3_O.pdf
