Description

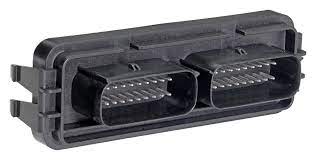

5810124011 Cinch Connector Wire to Board HDR 24 POS 3.5mm Solder RA Thru-Hole Automotive RoHS
Product Attributes
Category Connectors, Interconnects
Rectangular Connectors – Headers, Male Pins
Mfr Cinch Connectivity Solutions
Package Bulk
Connector Type
Header
Contact Type
Male Pin
Pitch – Mating
0.138″ (3.50mm)
Number of Positions
24 (12 + 12)
Number of Rows
2
Number of Positions Loaded
All
Style
Board to Cable/Wire
Shrouding
Shrouded – 4 Wall
Mounting Type
Panel Mount, Through Hole, Right Angle
Termination
Solder
Fastening Type
Latch Lock
Contact Length – Post
0.130″ (3.30mm)
Insulation Height
1.610″ (40.90mm)
Contact Shape
Square
Contact Finish – Mating
Tin
Contact Finish – Post
Tin
Contact Material
Brass
Insulation Material
Polymer, Glass Filled
Operating Temperature
-40C ~ 85C
Ingress Protection
IP67, IP69K
Insulation Color
Black
Current Rating (Amps)
10A
Applications
Automotive
Manufacturer: Cinch
MFG Part #: 5810124011
