Description

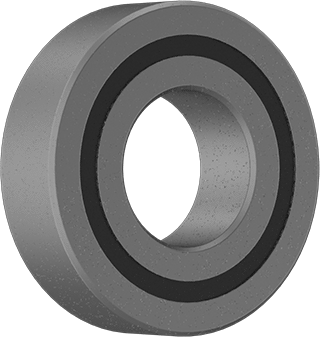

5972K83 Ball Sealed bearings block out dust and other contaminants better than open and shielded bearings, but retain the most heat.
Bearing Trade Number
Bearing Type: Ball
For Load Direction: Radial
Construction: Single Row
Seal Type: Sealed
Inner Ring Type: Standard
Ball Bearing Type: Standard
For Shaft Type: Round
For Shaft Diameter : 15mm
ID: 15mm
ID Tolerance: -0.008mm to 0mm
For Housing ID: 32mm
OD: 32mm
OD Tolerance: -0.011mm to 0mm
Width : 9mm
Width Tolerance: -0.12mm to 0mm
Ring Material: Steel
Ball Material: Steel
Cage Material: Steel
Seal Material: Buna-N Rubber
Radial Load Capacity, lbs.:
Dynamic: 1,250
Static: 640
Maximum Speed: 13,300 rpm
Lubrication: Lubricated
Lubricant: Grease
Shaft Mount Type: Press Fit
Temperature Range: -20 to 230F
ABEC Rating: ABEC-1
Radial Clearance Trade No.: C3
Radial Clearance: 0.011mm to 0.025mm
Specifications Met: DIN 625-1
RoHS: RoHS 3 (2015/863/EU) Compliant
