5SRTC-GG-K-24-36 OMEGA Thermocouple Connector, Subminiature, Insulated, Type K, Plug

Please call 800-717-6475 to check current stock and pricing.

5SRTC-GG-K-24-36 OMEGA Sub-Miniature Molded Connector Glass Braid K Thermocouple 24 AWG 36 Inches
The 5SRTC-GG-K-24-36/N is an Insulated Plug for use with K-type thermocouple. Glass braid insulated wire has maximum service temperature of 480C (900F).
24AWG Wire size
Applications

Sensing & Instrumentation

Description

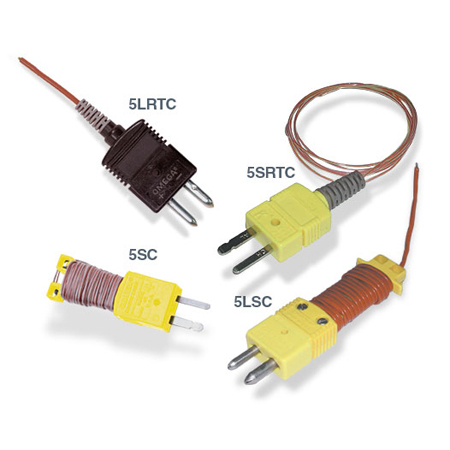

5SRTC-GG-K-24-36 OMEGA Ready-Made Insulated Thermocouples with Kapton, PFA, Glass Braid Insulation and Molded Connectors
Sold in Packs of 5 Economically Priced
New Kapton Insulation Available Now
(All models)!
J, K, T and E Calibrations Available
Made from Special Limits of Error Wire
20, 24, 30 and 36 AWG Available (SRTC Series)
30 and 36 AWG Wires with PFA Insulation. Max. Service Temp 260C (500F)
30 AWG Wires with Glass Braid Insulation. Maximum Service Temp 480C (900F)
1 and 2 meter (36 and 72″) Lengths Standard
Convenient 5-Pack
Molded Subminiature Connector with Integral Strain Relief/Spool
Max Service Temp for Connector Body 220C (425F)
Available from Stock in Convenient 5-Packs
PFA, Kapton®, or Glass Braid Insulation
Manufacturer:Electronic Components
Datasheet:5LSC_5SRTC.pdf
