Description

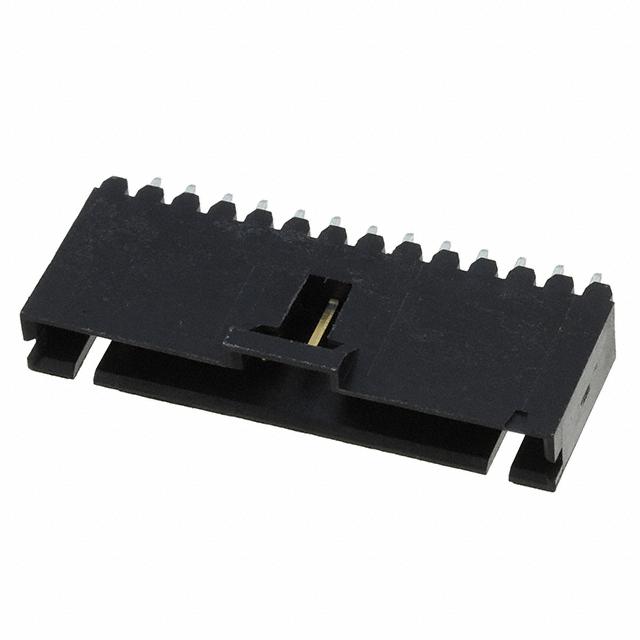

6-104910-6 TE Connectivity Connector Header PCB Shrouded Through Hole 17 position 0.100″ (2.54mm) Solder ST Thru-Hole Box/Tube
Connector Type Header
Contact Type Male Pin
Pitch – Mating 0.100″ (2.54mm)
Number of Positions 17
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded – 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Holder
Contact Length – Mating 0.230″ (5.84mm)
Contact Length – Post 0.130″ (3.30mm)
Overall Contact Length 0.545″ (13.84mm)
Insulation Height 0.535″ (13.60mm)
Contact Shape Square
Contact Finish – Mating Gold
Contact Finish Thickness – Mating 15.0uin (0.38um)
Contact Finish – Post Tin
Contact Material Brass
Insulation Material Thermoplastic
Features Keying Slot
Operating Temperature -65C ~ 105C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Contact Finish Thickness – Post 100.0uin (2.54um)
Applications Automotive, General Purpose, Medical, Telecommunications
Manufacturer Part Number: 6-104910-6
